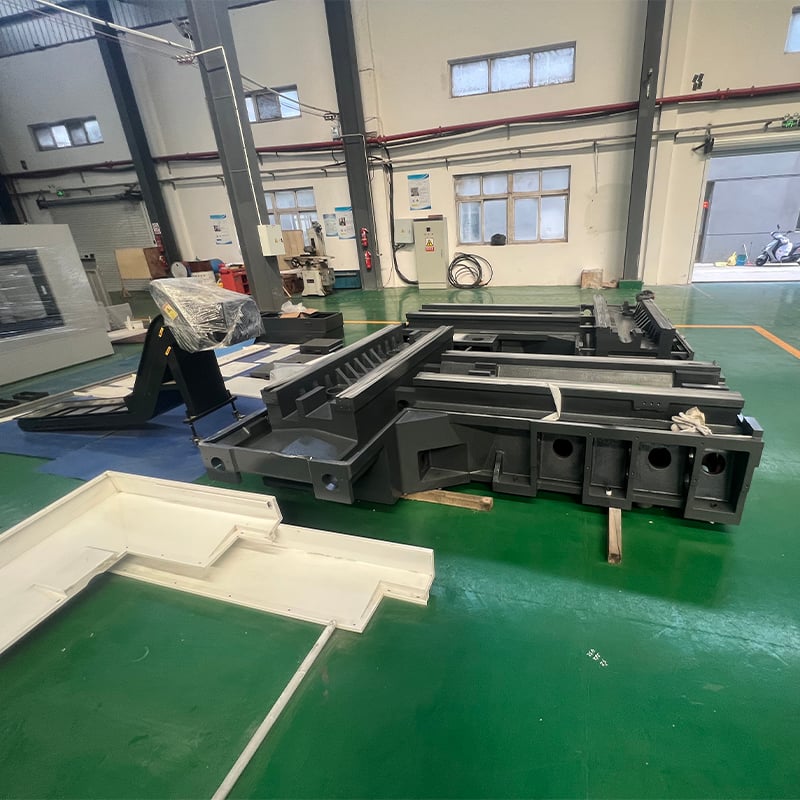

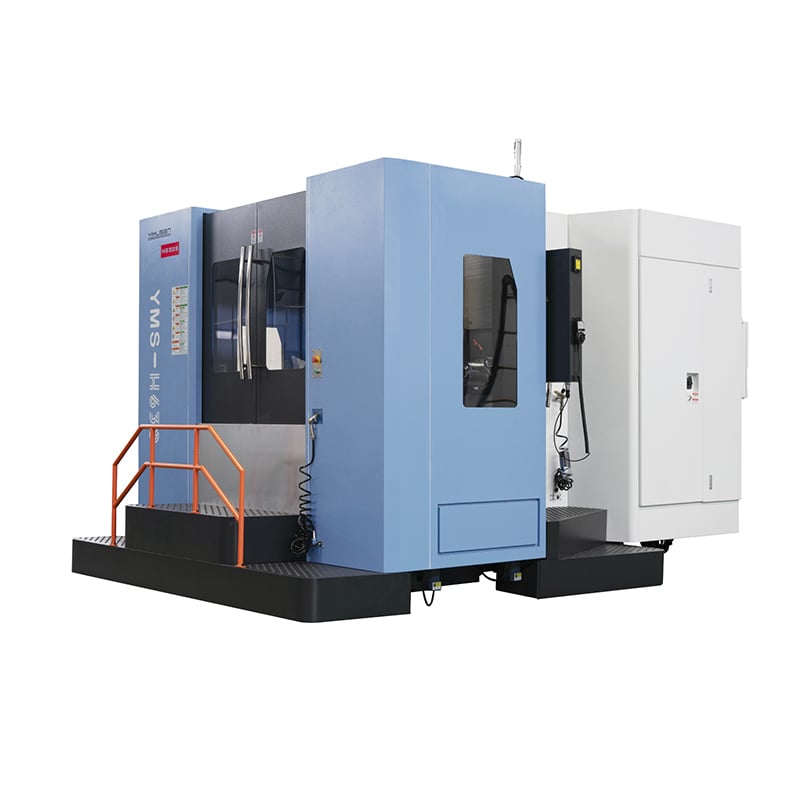

    Introducing the YMSH100S CNC Horizontal Machining, the perfect solution for all your manufacturing needs. With advanced features and unrivaled precision, this machine is designed to exceed your expectations. Its versatile applications cater to a wide range of industries, ensuring optimal performance. Experience seamless operations with its exceptional functions, empowering you to boost productivity. Gain a competitive edge with the YMSH100S and enjoy its countless advantages, including unmatched reliability and efficiency. Elevate your manufacturing process today with this top-notch CNC machinery.

    机型项目 Machine Type 单位Unit YMSH50S YMSH63S YMSH80S YMSH100S
    工作台Worktable
    工作台尺寸Worktable mm 500×500 630×630 800×800 1000×1000
    工作台最大负重Maximun Load of table kg 800 1200 2000 3000
    工作台T型槽T-slot (number x width) mm 5-18-100 5-18-125 5-22-160 7-22-125
    定位精度Positioning Accuracy sec 10 10 10 10
    重复定位精度Repeatability sec 2 2 2 2
    加工范围Processing range
    X/Y/Z轴行程Travel for X/Y/Z axes mm 700/600/580 1000/770/900 1300/1000/1000 1600/1100/1100
    主轴端面至工作台中心距离Distance form Spindle nose to table surface mm 225-1125 175-1075 200-1200 200-1200
    主轴中心线至工作台面距离Distance from spindle center to table surface mm 110-880 110-880 150-1150 150-1150
    主轴Spindle
    主轴规格Spindle specifications BT50 BT50 BT50 BT50
    主轴最高转速Max. Spindle speed rpm 6000 6000 6000 6000
    主轴电机功率Spindle Mootor Power Kw 15/18.5 15/18.5 15/18.5 15/18.5
    驱动进给Drive feed
    快速进给速度（X/Y/Z）Fast feed speed m/min 24/20/24 24/20/24 24/20/20 24/20/20
    快速进给速度（B）Fast feed speed（B） r/min 10 10 10 10
    刀库Tool magazine
    圆盘式刀库Vertical disc magazine（ATC） pcs 24T 24T 24T 24T
    平均换刀时间Tool change time sec 4.01 4.01 4.01 4.01
    最大刀具重量Max.Tool weight kg 18 18 18 18
    最大刀具直径（满刀）Max.Tool dia（fully loaded） mm 112 112 112 112
    最大刀具直径（临空刀）Max.Tool dia（no adjacent） mm 200 200 200 200
    最大刀具长度Max.Tool length mm 300 300 300 300
    刀具交换方式Tool exchanging manner Pneumatic/random
    精度Precision
    定位精度（X/Y/Z）Positioning Accuracy mm 0.01 0.01 0.012 0.012
    重复定位精度（X/Y/Z）Repeatability mm 0.006 0.006 0.008 0.008
    气源Air supply
    空气压力Air pressure Kg/Cm² 6-8 6-8 6-8 6-8
    气源流量Air source flow m³/min 280 280 280 280
    其它Other
    机械重量Machine weight kg 12500 13000 18000 18500
    电力消耗Machine Power KVA 35 35 45 45
    外形尺寸Dimensions (width×depth×height) mm 4720×3430×3350 4720×3430×3350 5210×4125×3700 5210×4125×3700
    滚珠丝杠，滚动导轨Ball screw, rolling guide Taiwan HIWIN/PMI Taiwan HIWIN/PMI Taiwan HIWIN/PMI Taiwan HIWIN/PMI
    丝杠规格（XYZ）Screw specifications (XYZ) 3216/3216/3216 4016/4016/4016 4016/4016/4016 4012/4012/4012
    滚柱导轨（XYZ）Roller guide (XYZ) mm 55/55/55 55/55/55 55/55/55 55/55/55
    主轴冷却系统Spindel Cooling System Air conditioner
    润滑系统Lubrication System Automatic lubrication (68# rail oil)
    切削冷却系统Cutting Oil System Ring spray, compressed air
    控制器系统CNC FANUC  0i MF Pius（5） FANUC  0i MF Pius（5） FANUC  0i MF Pius（5） FANUC  0i MF Pius（5）

    Product Features

    • YMSH100S cnc horizontal machining
    • Product Keywords: CNC horizontal machining
    • Key Features:
    • High precision machining
    • Horizontal orientation for efficient production
    • CNC technology for automated and precise operations
    • Compact design for space-saving
    • Easy to use and control

    Application of CNC horizontal machining

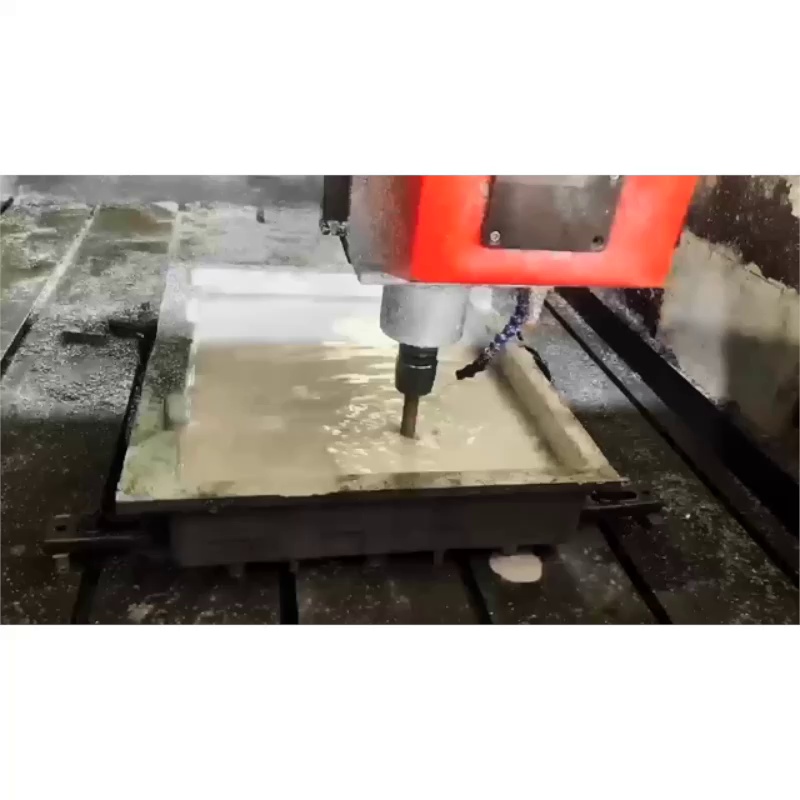

    • CNC horizontal machining is used for precise and efficient milling, drilling, and cutting of various materials.

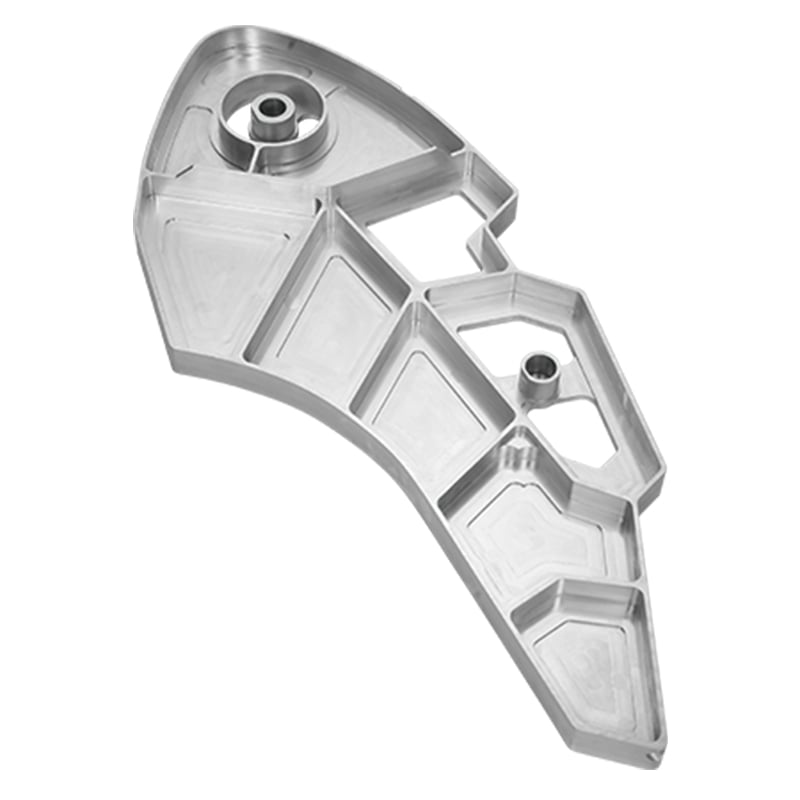

    • It is commonly used in industries like automotive, aerospace, and manufacturing for producing complex components.
    • This machine enables high precision and accuracy in machining operations, ensuring superior quality end products.
    • It offers versatility in terms of materials that can be processed, including metals, plastics, and composites.

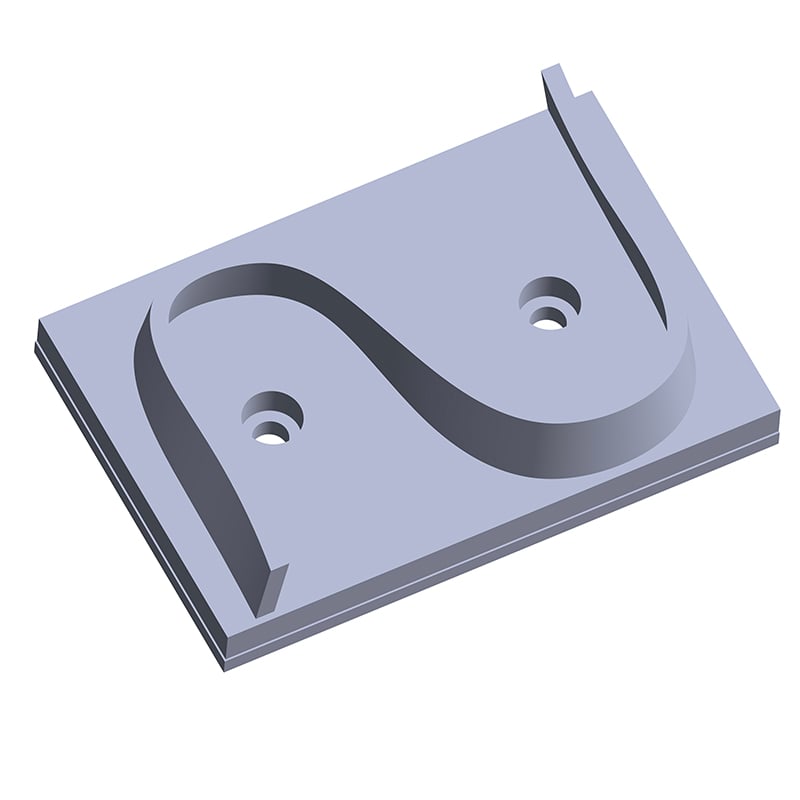

    • CNC horizontal machining is ideal for creating intricate shapes, contours, and patterns on workpieces.
    • It reduces production time and costs by automating the machining process and minimizing human errors.
    • The YMSH100S model is known for its robust construction, advanced control system, and high productivity.
    • It is suitable for small to medium-sized workpieces and can handle various machining operations simultaneously.
