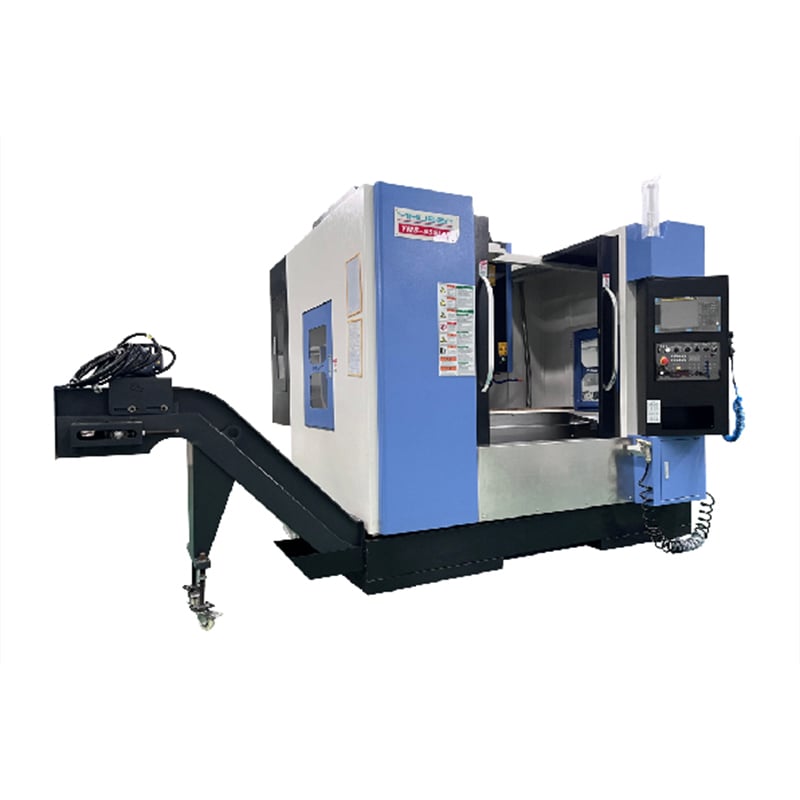

    Introducing the VMC-855L CNC Vertical Machining Center for sale! Our cutting-edge machinery offers unmatched precision and efficiency in the manufacturing industry. With advanced features and functions, this versatile center is perfect for a wide range of applications. Experience the advantage of increased productivity and seamless operations. Upgrade your manufacturing process with our top-of-the-line CNC vertical machining center. Don't miss out on this opportunity to revolutionize your production line!

    Item Model Unit VMC-6540L VMC-850L VMC-855L VMC-1160L
    Worktable mm 800×400 1000×500 1000×500 1200×600
    Travel for X/Y/Z axes mm 650/400/500 800/500/500 800/550/550 1100/600/600
    Distance from Spindle nose to table surface mm 100-600 100-600 150-700 120-720
    Distance from spindle center to column guide surface mm 460 570 570 645
    Maximum Load of table kg 350 500 600 1000
    T-slot (number x width) mm 3-14-100 5-18-90 5-18-90 5-18-100
    Positioning Accuracy mm 0.01/300 0.01 0.01/300 0.012/300
    Repeatability mm 0.008 0.008 0.008 0.008/300
    Max. Spindle speed rpm 8000or10000 8000or10000 8000or10000 8000or10000
    Spindle specifications (model/installation diameter) BT40/120 BT40/140 BT40/150 BT40/150
    Ball screw, rolling guide Taiwan HIWIN/PMI Taiwan HIWIN/PMI Taiwan HIWIN/PMI Taiwan HIWIN/PMI
    Screw specifications (XYZ) 3216/3216/3216 4016/4016/4016 4016/4016/4016 4012/4012/4012
    Roller guide (XYZ) mm 30/30/30 35/35/35 35/45/45 45/45/45
    Spindel Cooling System Air conditioner
    Lubrication System Automatic lubrication (58# rail oil)
    Cutting Oil System Ring spray, compressed air
    Vertical disc magazine（ATC） pcs 16T 24T 24T 24T
    Max.Tool (diameter/length/weight) 90/300/8kg 78/300/8kg 78/300/8kg 78/300/8kg
    Tool exchanging manner Pneumatic
    Tool change time sec 1.8 1.8 1.8 1.8
    CNC SYNTEC  22MA FANUC  0i MF Pius（5） FANUC  0i MF Pius（5） FANUC  0i MF Pius（5）
    Spindle Power Kw 5.5/7.5 βiI 8/12000（7.5/11） βiI 8/12000（7.5/11） βiI 12/10000（11/15）
    Servo motor（XYZ） Nm AM11×2+AM18B βiSc 12/3000×2+βiS 22B/3000 βiSc 12/3000×2+βiS 22B/3000 βiS 22/3000×2+βiS 30B/2000
    Air pressure Kg/Cm² 6 6 6 6
    Air source flow m³/min ≥0.3 ≥0.3 ≥0.3 ≥0.3
    Machine Power KVA 15 20 20 30
    Dimensions (width×depth×height) mm 2320×1800×2200 2300×1800×2300 2700×2400×2700 3150×2450×2750
    Machine weight kg 3800 5000 5500 6500

    Product Features

    • Vertical Machining Center: Offers vertical milling capabilities for precise and efficient machining
    • CNC Control: Equipped with advanced CNC technology for automated and accurate operations
    • For Sale: Available for purchase, providing an opportunity to enhance manufacturing capabilities
    • High Precision: Delivers exceptional accuracy and tight tolerances for superior machining results
    • Versatile: Suitable for a wide range of applications, including drilling, milling, and cutting

    Application of CNC vertical machining center for sale

    • CNC vertical machining center for sale is a highly efficient and accurate machine used for various metalworking applications.
    • It is designed to perform precision milling, drilling, and cutting operations on a wide range of materials.
    • With its advanced CNC technology, it offers excellent control and flexibility in producing complex components.
    • Perfect for industries like aerospace, automotive, and manufacturing, where high precision and productivity are crucial.
    • Allows for easy programming and automation, reducing human error and increasing production speed.
    • Offers a large working area and can handle heavy-duty machining tasks with ease.
    • Equipped with a reliable spindle system, it ensures smooth and efficient material removal.
    • Features a user-friendly interface and intuitive controls, making it easy to operate and maintain.
    • Provides exceptional accuracy, repeatability, and surface finish, ensuring top-quality finished products.
    • Investing in the VMC-855L CNC vertical machining center for sale guarantees enhanced productivity and profitability.
