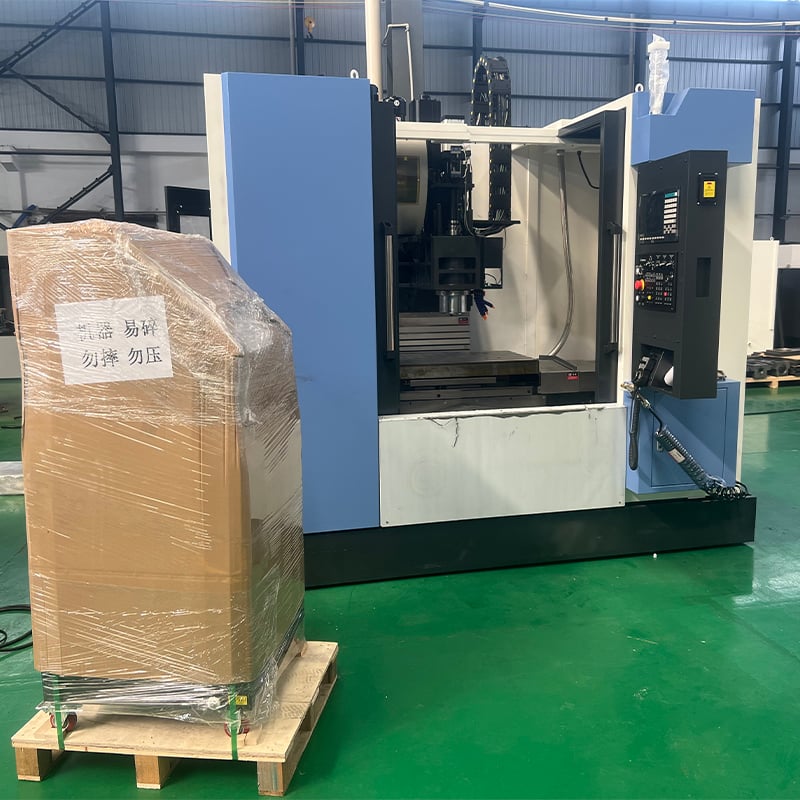

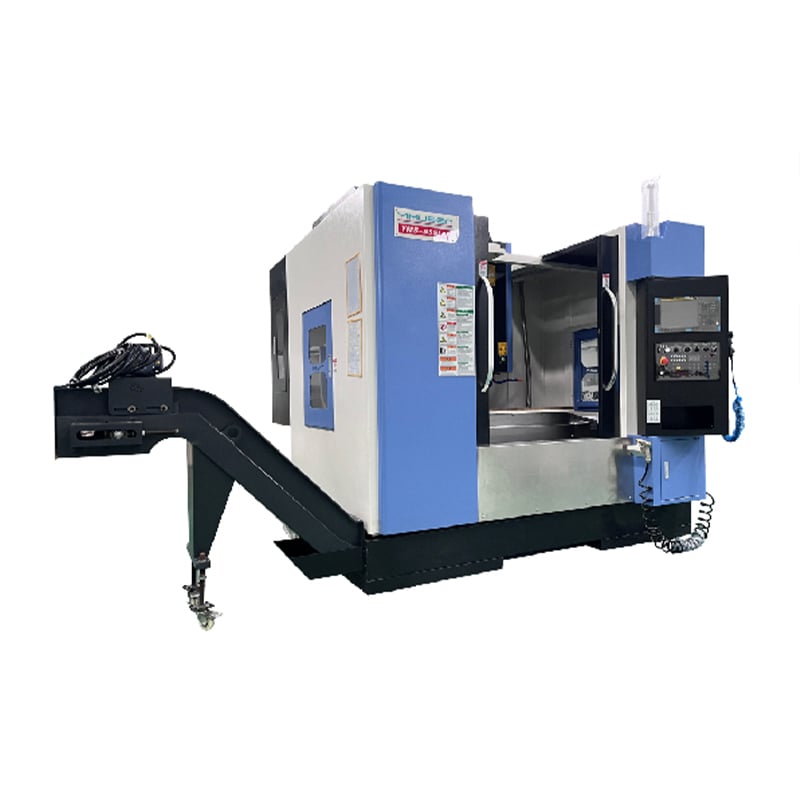

Introducing our VMC-850L CNC double-column vertical machining center, the ultimate solution for precision manufacturing. With advanced technology and robust construction, this machine offers unparalleled performance and reliability. Its precise control system ensures accurate machining, while the double-column design provides enhanced stability and rigidity. Ideal for various applications, from small parts to large-scale production, this versatile CNC machine delivers outstanding results. Experience the advantage of increased productivity, efficiency, and cost-effectiveness with our VMC-850L CNC double-column vertical machining center.
| Item Model | Unit | VMC-6540L | VMC-850L | VMC-855L | VMC-1160L |
| Worktable | mm | 800×400 | 1000×500 | 1000×500 | 1200×600 |
| Travel for X/Y/Z axes | mm | 650/400/500 | 800/500/500 | 800/550/550 | 1100/600/600 |
| Distance from the Spindle nose to the table surface | mm | 100-600 | 100-600 | 150-700 | 120-720 |
| Distance from spindle center to column guide surface | mm | 460 | 570 | 570 | 645 |
| Maximum Load of table | kg | 350 | 500 | 600 | 1000 |
| T-slot (number x width) | mm | 3-14-100 | 5-18-90 | 5-18-90 | 5-18-100 |
| Positioning Accuracy | mm | 0.01/300 | 0.01 | 0.01/300 | 0.012/300 |
| Repeatability | mm | 0.008 | 0.008 | 0.008 | 0.008/300 |
| Max. Spindle speed | rpm | 8000or10000 | 8000or10000 | 8000or10000 | 8000or10000 |
| Spindle specifications (model / installation diameter) | BT40/120 | BT40/140 | BT40/150 | BT40/150 | |
| Ball screw, rolling guide | Taiwan HIWIN/PMI | Taiwan HIWIN/PMI | Taiwan HIWIN/PMI | Taiwan HIWIN/PMI | |
| Screw specifications (XYZ) | 3216/3216/3216 | 4016/4016/4016 | 4016/4016/4016 | 4012/4012/4012 | |
| Roller guide (XYZ) | mm | 30/30/30 | 35/35/35 | 35/45/45 | 45/45/45 |
| Spindel Cooling System | Air conditioner | ||||
| Lubrication System | Automatic lubrication (58# rail oil) | ||||
| Cutting Oil System | Ring spray, compressed air | ||||
| Vertical disc magazine（ATC） | pcs | 16T | 24T | 24T | 24T |
| Max.Tool (diameter / length / weight) | 90/300/8kg | 78/300/8kg | 78/300/8kg | 78/300/8kg | |
| Tool exchanging manner | Pneumatic | ||||
| Tool change time | sec | 1.8 | 1.8 | 1.8 | 1.8 |
| CNC | SYNTEC 22MA | FANUC 0i MF Pius（5） | FANUC 0i MF Pius（5） | FANUC 0i MF Pius（5） | |
| Spindle Power | Kw | 5.5/7.5 | βiI 8/12000（7.5/11） | βiI 8/12000（7.5/11） | βiI 12/10000（11/15） |
| Servo motor（XYZ） | Nm | AM11×2+AM18B | βiSc 12/3000×2+βiS 22B/3000 | βiSc 12/3000×2+βiS 22B/3000 | βiS 22/3000×2+βiS 30B/2000 |
| Air pressure | Kg/Cm² | 6 | 6 | 6 | 6 |
| Air source flow | m³/min | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.3 |
| Machine Power | KVA | 15 | 20 | 20 | 30 |
| Dimensions (width×depth×height) | mm | 2320×1800×2200 | 2300×1800×2300 | 2700×2400×2700 | 3150×2450×2750 |
| Machine weight | kg | 3800 | 5000 | 5500 | 6500 |
