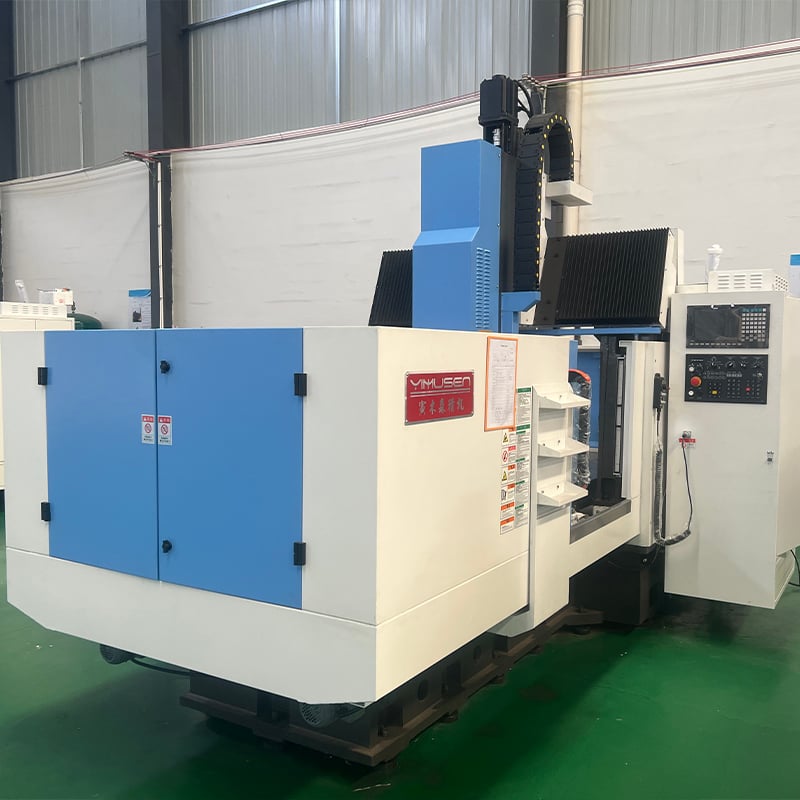

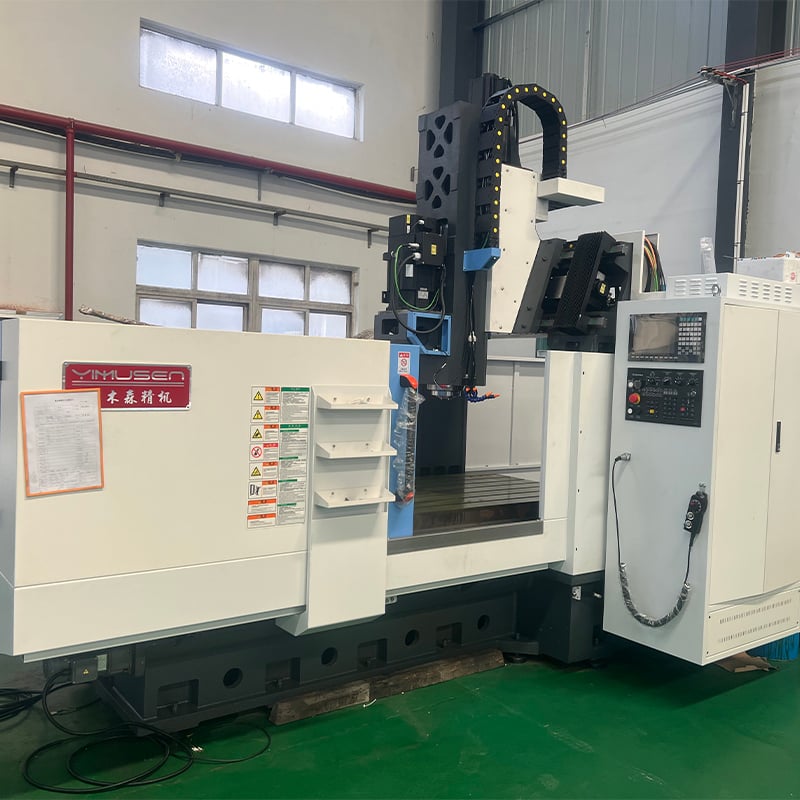

Introducing the L2319 Gantry CNC Machine – revolutionizing the manufacturing industry! Our advanced machine offers unparalleled precision and efficiency. With its sturdy gantry structure, it ensures stability and accuracy for all your machining needs. From intricate designs to large-scale projects, this machine excels in delivering exceptional results. Its versatile applications cater to various industries, like automotive, aerospace, and more. Experience the power of innovation with our L2319 Gantry CNC Machine – your gateway to success!
| Item | Unit | L1013 | L1017B | L2016 | L2318 | L2518 |
| Table Area | mm | 1000×1300 | 1000×1700 | 2200×1800 | 2400×1900 | 2700×2000 |
| X/Y/Z Travel | mm | 850×1200×500 | 850×1600×500 | 2000×1600×650 | 2000×1600×650 | 2500×1800×650 |
| Spindle Face to Table | mm | 150~650 | 200~700 | 100-875 | 100-875 | 100-875 |
| Gantry Width | mm | 1100 | 1100 | 800 | 800 | 800 |
| Max Load | Kg | 600 | 600 | Unlimited theory | Unlimited theory | Unlimited theory |
| Spindel & Guide Model | Taiwan HIWIN/PMI | Taiwan HIWIN/PMI | ||||
| Spindle Power | Kw | 5.5/7.5 | 5.5/7.5 | 7.5/11 | 7.5/11 | 7.5/11 |
| Spindel Max Speed | rpm/min | 8000Belt | 8000Belt | 10000Direct connection | 10000Direct connection | 10000Direct connection |
| Spindle specifications (model / installation diameter) | BT40/150 | BT40/150 | BT40/150 | BT40/150 | BT40/150 | |
| Max Moving Speed | mm/min | 10000 | 8000 | |||
| Max Processing Speed | mm/min | 6000 | 6000 | |||
| Positioning Accuracy | mm | 0.032 | 0.037 | |||
| Repeatability | mm | 0.013 | 0.013 | |||
| CNC System | SYNTEC 21MA | SYNTEC 22MA | ||||
| Servo System | Yaskawa digital AC servo | Yaskawa digital AC servo | ||||
| Spindel Cooling System | Independent cooling (white oil) | Independent cooling (white oil) | ||||
| Cutting Oil System | Double nozzle (cutting fluid, compressed air) | Double nozzle (cutting fluid, compressed air) | ||||
| Lubrication System | Automatic lubrication (58# rail oil) | Automatic lubrication (58# rail oil) | ||||
| Tool Setting | Null | Null | ||||
| Hand Wheel | Japan TOSOKU | Japan TOSOKU | ||||
| T-slot (number x width) | mm | 7-18 | 8-18 | 7-22-275 | 7-22-275 | 7-22-275 |
| Machine Power | Kw | 18 (AC three-phase 380V) | 25 (AC three-phase 380V) | |||
| Protection System | Full | Half | Half | Half | Half | |
| Machine weight | T | 7 | 8 | 10 | 14 | 15 |
| Dimensions (width×depth×height) | mm | 3600×2150×3050 | 4700×2400×3100 | 3800×3200×3380 | 4100×3500×3380 | 4250×3450×3400 |
