    Introducing the L2318 CNC Machine Gantry, a game-changer in the manufacturing industry. Designed with precision and efficiency in mind, this cutting-edge gantry offers unmatched product features, including advanced technology, unparalleled performance, and superior durability. Ideal for a wide range of applications, it effortlessly tackles complex tasks with ease, delivering exceptional results every time. With its user-friendly interface and seamless functionality, this CNC machine gantry revolutionizes the way you work. Stay ahead of the competition and experience the advantages of the L2318 CNC Machine Gantry today!

    Item Unit L1013 L1017B L2016 L2318 L2518
    Table Area mm 1000×1300 1000×1700 2200×1800 2400×1900 2700×2000
    X/Y/Z Travel mm 850×1200×500 850×1600×500 2000×1600×650 2000×1600×650 2500×1800×650
    Spindle Face to Table mm 150~650 200~700 100-875 100-875 100-875
    Gantry Width mm 1100 1100 800 800 800
    Max Load Kg 600 600 Unlimited theory Unlimited theory Unlimited theory
    Spindel & Guide Model Taiwan HIWIN/PMI Taiwan HIWIN/PMI
    Spindle Power Kw 5.5/7.5 5.5/7.5 7.5/11 7.5/11 7.5/11
    Spindel Max Speed rpm/min 8000Belt 8000Belt 10000Direct connection 10000Direct connection 10000Direct connection
    Spindle specifications (model / installation diameter) BT40/150 BT40/150 BT40/150 BT40/150 BT40/150
    Max Moving Speed mm/min 10000 8000
    Max Processing Speed mm/min 6000 6000
    Positioning Accuracy mm 0.032 0.037
    Repeatability mm 0.013 0.013
    CNC System SYNTEC 21MA SYNTEC 22MA
    Servo System Yaskawa digital AC servo Yaskawa digital AC servo
    Spindel Cooling System Independent cooling (white oil) Independent cooling (white oil)
    Cutting Oil System Double nozzle (cutting fluid, compressed air) Double nozzle (cutting fluid, compressed air)
    Lubrication System Automatic lubrication (58# rail oil) Automatic lubrication (58# rail oil)
    Tool Setting Null Null
    Hand Wheel Japan TOSOKU Japan TOSOKU
    T-slot (number x width) mm 7-18 8-18 7-22-275 7-22-275 7-22-275
    Machine Power Kw 18 (AC three-phase 380V) 25 (AC three-phase 380V)
    Protection System Full Half Half Half Half
    Machine weight T 7 8 10 14 15
    Dimensions (width×depth×height) mm 3600×2150×3050 4700×2400×3100 3800×3200×3380 4100×3500×3380 4250×3450×3400

    Product Features

    • High Precision: The L2318 CNC machine gantry ensures accurate and precise cutting, drilling, and milling operations.
    • Sturdy Construction: The gantry is built with durable materials, providing stability and reliability during heavy-duty usage.
    • Efficient Performance: This CNC machine gantry offers fast and efficient operation, increasing productivity and reducing production time.
    • Versatile Functionality: It can perform a wide range of tasks, including carving, engraving, and shaping various materials.
    • User-Friendly Interface: The L2318 CNC machine gantry features an intuitive interface, making it easy for users to operate and program.

    Application of CNC machine gantry

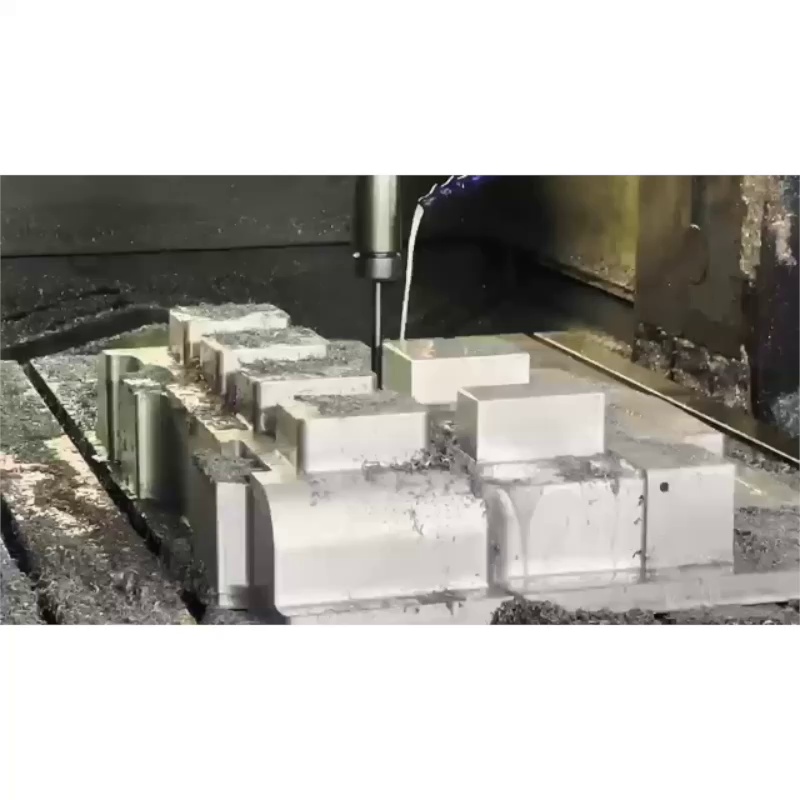

    • Used for precision cutting, drilling, and milling in various industries
    • Perfect for creating intricate designs in wood, plastic, and metal materials
    • Offers accurate and efficient production of 2D and 3D parts
    • Ideal for small to medium-sized workshops and manufacturing facilities
    • Equipped with a sturdy gantry structure for stability and precision
