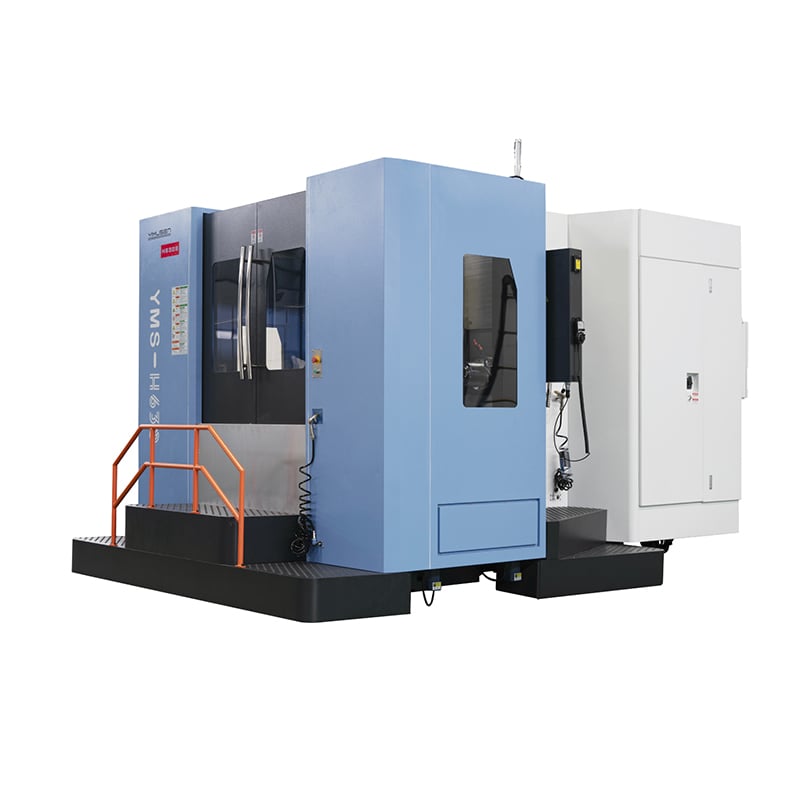

    Introducing the L1013 Horizontal Spindle Machining Centre, designed specifically for manufacturing CNC machinery. With its advanced features and cutting-edge functions, this machining centre is a game-changer in the industry. Its versatile applications make it suitable for various manufacturing processes. Experience the advantage of precise and efficient machining, delivering high-quality results every time. Maximize your productivity and stay ahead of the competition with the L1013 Horizontal Spindle Machining Centre.

    Item Unit L1013 L1017B L2016 L2318 L2518
    Table Area mm 1000×1300 1000×1700 2200×1800 2400×1900 2700×2000
    X/Y/Z Travel mm 850×1200×500 850×1600×500 2000×1600×650 2000×1600×650 2500×1800×650
    Spindle Face to Table mm 150~650 200~700 100-875 100-875 100-875
    Gantry Width mm 1100 1100 800 800 800
    Max Load Kg 600 600 Unlimited theory Unlimited theory Unlimited theory
    Spindel & Guide Model Taiwan HIWIN/PMI Taiwan HIWIN/PMI
    Spindle Power Kw 5.5/7.5 5.5/7.5 7.5/11 7.5/11 7.5/11
    Spindel Max Speed rpm/min 8000Belt 8000Belt 10000Direct connection 10000Direct connection 10000Direct connection
    Spindle specifications (model / installation diameter) BT40/150 BT40/150 BT40/150 BT40/150 BT40/150
    Max Moving Speed mm/min 10000 8000
    Max Processing Speed mm/min 6000 6000
    Positioning Accuracy mm 0.032 0.037
    Repeatability mm 0.013 0.013
    CNC System SYNTEC 21MA SYNTEC 22MA
    Servo System Yaskawa digital AC servo Yaskawa digital AC servo
    Spindel Cooling System Independent cooling (white oil) Independent cooling (white oil)
    Cutting Oil System Double nozzle (cutting fluid, compressed air) Double nozzle (cutting fluid, compressed air)
    Lubrication System Automatic lubrication (58# rail oil) Automatic lubrication (58# rail oil)
    Tool Setting Null Null
    Hand Wheel Japan TOSOKU Japan TOSOKU
    T-slot (number x width) mm 7-18 8-18 7-22-275 7-22-275 7-22-275
    Machine Power Kw 18 (AC three-phase 380V) 25 (AC three-phase 380V)
    Protection System Full Half Half Half Half
    Machine weight T 7 8 10 14 15
    Dimensions (width×depth×height) mm 3600×2150×3050 4700×2400×3100 3800×3200×3380 4100×3500×3380 4250×3450×3400

    Product Features

    • Horizontal Spindle: The L1013 machining centre features a horizontal spindle, allowing for precise and efficient horizontal machining.
    • High Precision: This machining centre is designed to deliver high precision results, ensuring accurate and consistent machining operations.
    • Efficient Machining: With its horizontal spindle design, this machining centre enables efficient and effective machining, increasing productivity.
    • Compact Design: The L1013 features a compact design, making it suitable for limited space environments while still providing powerful machining capabilities.

    Application of horizontal spindle machining centre

    • Efficiently performs horizontal machining operations

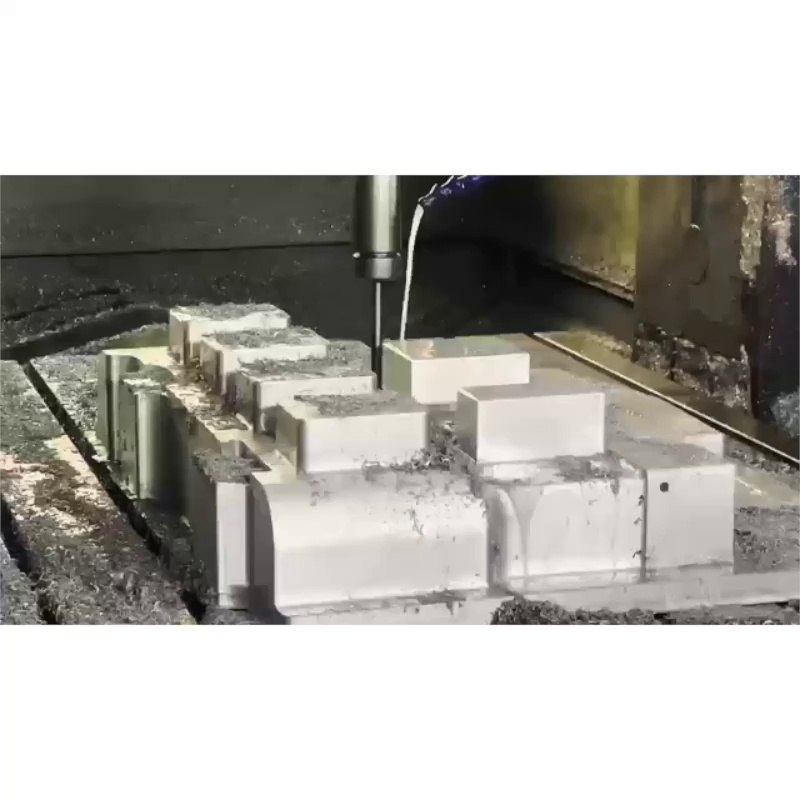

    • Optimal for precision drilling, milling, and cutting processes

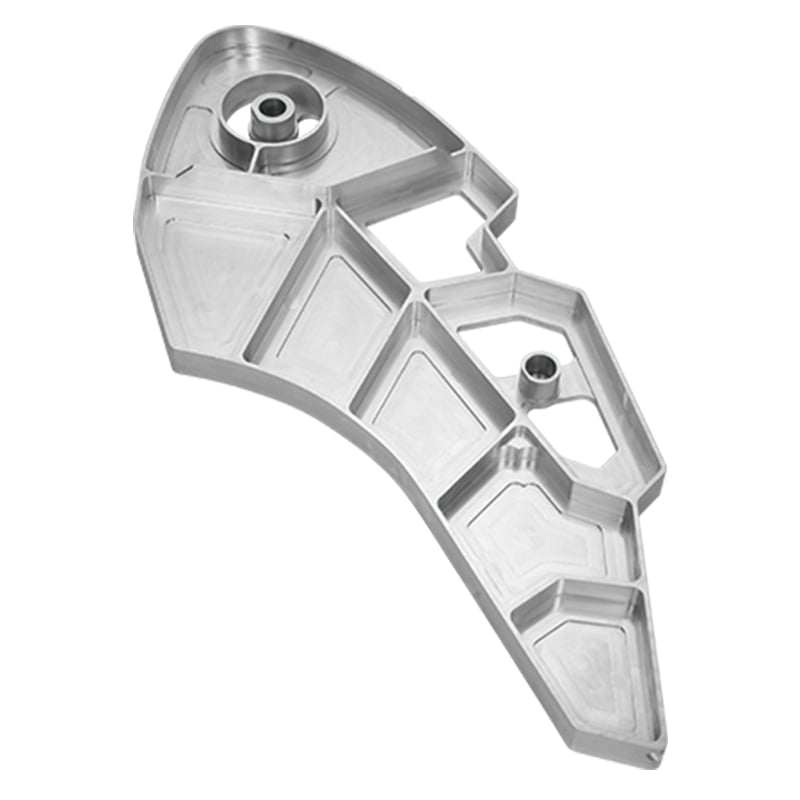

    • Ideal for manufacturing components with complex geometries
    • Ensures high accuracy and repeatability in machining
    • Suitable for various industries like automotive, aerospace, and mold-making
