• HSP690 cnc hobbing machine
  • HSP690 cnc hobbing machine

    • HSP690 cnc hobbing machine

    The HSP690 CNC Hobbing Machine has been designed specifically for the manufacturing of CNC machinery. This advanced machine offers a wide range of features and functions that cater to the needs of our users. With its precise and efficient performance, it ensures superior product quality and accuracy. The HSP690 CNC Hobbing Machine is perfect for various applications, making it an indispensable tool for industries. Its cutting-edge technology and user-friendly interface allow for ease of operation. Experience the advantage of increased productivity and exceptional performance with our HSP690 CNC Hobbing Machine.

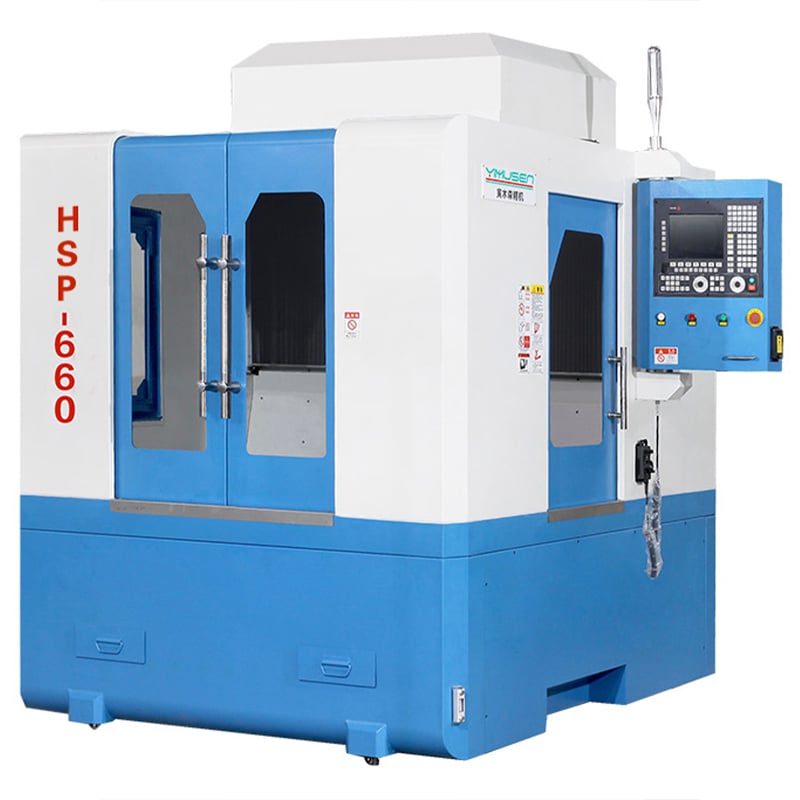

    Item Unit HSP660 HSP690
    Worktable mm 600×600 600×900
    Travel for X/Y/Z axes mm 700×600×300 700×900×300
    Distance form Spindle nose to table surface mm 50-350 160-460
    Gantry Width mm 780 780
    Maximun Load of table Kg 400 400
    Spindle specifications BT30 BT30
    Spindle Power Kw 5.5 5.5
    Spindel Max Speed rpm/min 0-30000 0-30000
    Ball screw, rolling guide Taiwan HIWIN/PMI Taiwan HIWIN/PMI
    Max Moving Speed mm/min 10000
    Max Processing Speed mm/min 8000
    Positioning Accuracy mm 0.008
    Repeatability mm 0.005
    CNC System FAGOR 8055I/FL-EN
    Servo System Yaskawa digital AC servo
    Spindel Cooling System Air conditioner
    Cutting Oil System Ring spray, compressed air
    Lubrication System Automatic lubrication (58# rail oil)
    Tool Setting Japan METORL
    Hand Wheel Japan TOSOKU
    T-slot (number x width) mm 5-14 5-18
    Machine Power Kw 10kw (AC three-phase 380V)
    Protection System Full Full
    Machine weight T 3.5 5
    Dimensions (width×depth×height) mm 2500×2000×2500 2700×2000×2700

    Product Features

    • High Precision: The HSP690 CNC hobbing machine ensures precise and accurate hobbing operations.
    • Advanced CNC Technology: Incorporates cutting-edge CNC technology for enhanced control and automation.
    • Efficient Hobbing: Provides an efficient and fast hobbing process for increased productivity.
    • Versatile: Capable of hobbing a wide range of materials and gears of different sizes and complexities.
    • Reliable Performance: Delivers consistent and reliable performance, ensuring high-quality hobbing results.

    Application of cnc hobbing machine

    • CNC hobbing machine is widely used in the manufacturing industry for precise and efficient gear cutting.
    • It is used for producing gears with high precision and excellent surface finish.
    • This machine is suitable for various industries like automotive, aerospace, and machinery.
    • It provides accurate and consistent results, ensuring the quality of the gears produced.
    • The CNC technology allows for easy programming and customization of gear-cutting operations.
    • It improves productivity by reducing manual labor and increasing automation.
    • It is capable of producing a wide range of gears, including spur gears, helical gears, and worm gears.
    • CNC hobbing machine offers high-speed cutting, ensuring faster production cycles.
    • It is designed to handle both small and large batch production requirements.
    • This machine helps in achieving cost-effectiveness and high efficiency in gear manufacturing processes.
