    Introducing our high-speed CNC milling machine, the 1613L, designed specifically for the manufacturing industry. With a focus on user concerns, this machine boasts exceptional features, applications, functions, and advantages. Experience lightning-fast milling with precision and efficiency, allowing for precise and intricate designs. From aerospace to automotive, this machine is versatile and perfect for various industries. Maximize productivity and achieve superior results with our high-speed CNC milling 1613L.

    Item Unit 1311L 1613L 2015L 2518L 3016L
    Table Area mm 1300×1000 1600×1200 2100×1450 2600×1600 3200×1400
    X/Y/Z Travel mm 1300×1100×520 1600×1350×520 2000×1600×600 2500×1800×650 3000×1600×650
    Spindle Face to Table mm 130~650 160~670 160-760 200-850 180-830
    Gantry Width mm 1100 1350 1610 1800 1600
    Max Load Kg 2000 2500 3000 3000 4500
    Spindel & Guide Model Taiwan HIWIN or PMI  45mm Taiwan HIWIN or PMI  55mm
    Spindle Power Kw 7.5/11 7.5/11 7.5/11 7.5/11 7.5/11
    Spindel Max Speed rpm/min 10000Direct connection 10000Direct connection 10000Direct connection 10000Direct connection 10000Direct connection
    Spindle specifications (model / installation diameter) BT40/150 BT40/150 BT40/150 BT40/150 BT40/150
    Max Moving Speed mm/min 10000 10000
    Max Processing Speed mm/min 6000 6000
    Positioning Accuracy mm 0.032 0.037
    Repeatability mm 0.013 0.013
    CNC System SYNTEC 22MA SYNTEC 22MA
    Servo System Syntec digital AC servo Yaskawa digital AC servo
    Spindel Cooling System Independent cooling (white oil) Independent cooling (white oil)
    Cutting Oil System Double nozzle (cutting fluid, compressed air) Double nozzle (cutting fluid, compressed air)
    Lubrication System Automatic lubrication (58# rail oil) Automatic lubrication (58# rail oil)
    Vertical disc magazine（ATC） pcs 24T 24T 24T 24T 24T
    Max.Tool (diameter / length / weight) 78/300/8kg 78/300/8kg 78/300/8kg 78/300/8kg 78/300/8kg
    Tool exchanging manner Pneumatic
    Tool change time sec 1.8 1.8 1.8 1.8 1.8
    Hand Wheel Japan TOSOKU Japan TOSOKU
    T-slot (number x width) mm 7-20 7-20 7-20 7-20 9-20
    Machine Power Kw 28 (AC three-phase 380V) 30 (AC three-phase 380V)
    Protection System Full Full Full Full Full
    Machine weight T 9 10 16 19 21
    Dimensions (width×depth×height) mm 3800×2100×3000 4200×2200×2800 5600×2800×3500 7000×3000×3000 7500×3000×3000

    Product Features

    • High speed: The CNC milling machine operates at a fast speed, allowing for efficient and quick machining processes.
    • Precision: The machine ensures accurate and precise milling, delivering high-quality finished products.
    • CNC technology: The use of CNC (Computer Numerical Control) technology allows for automated and precise control of the milling process.
    • 1613L model: The specific model number indicates the size and specifications of the CNC milling machine, providing a suitable option for various milling requirements.
    • Compact design: The machine's compact design allows for easy installation and integration into different manufacturing environments.

    Application of high speed cnc milling

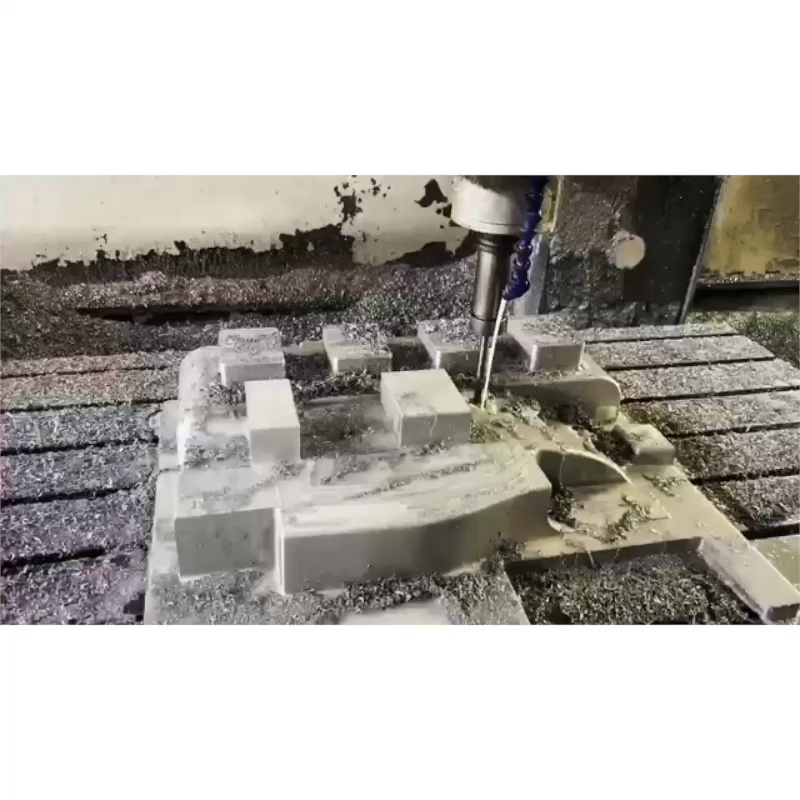

    • Efficiently machine various materials with high speed CNC milling
    • Precision cutting, shaping, and drilling for industrial applications

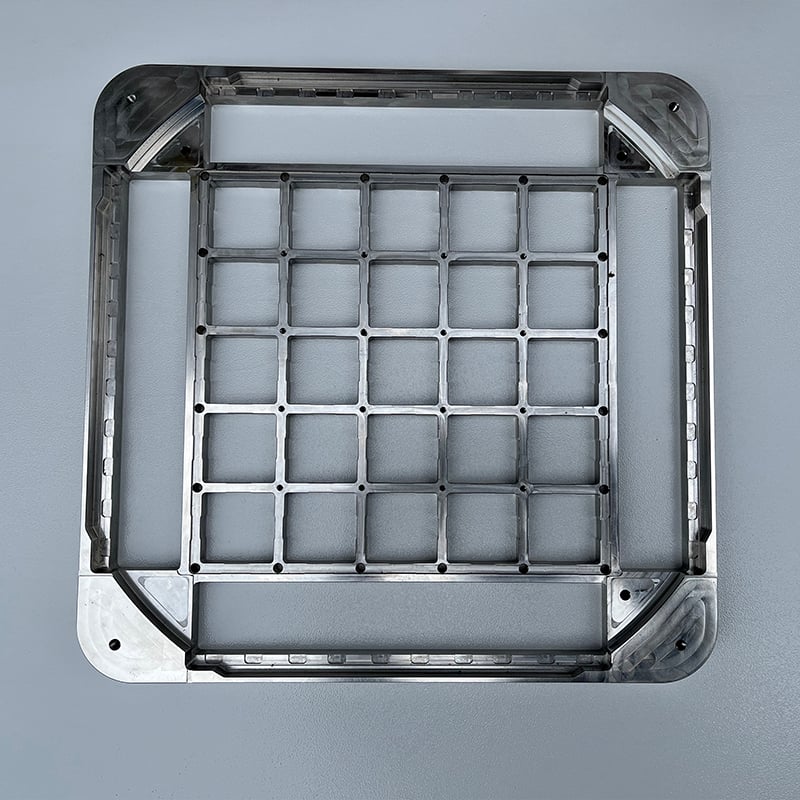

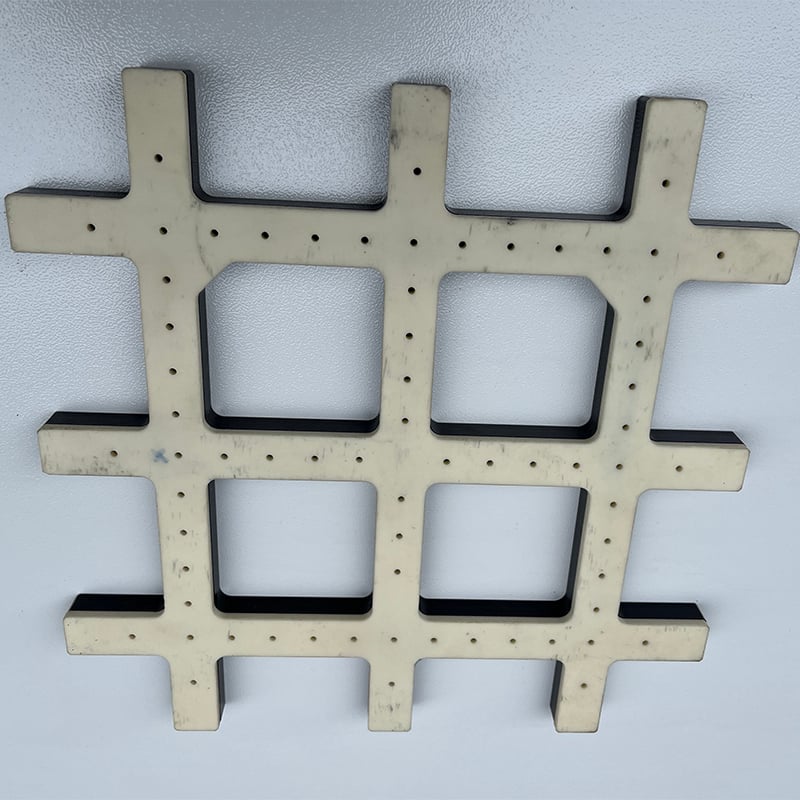

    • Create intricate patterns, molds, or prototypes with speed and accuracy

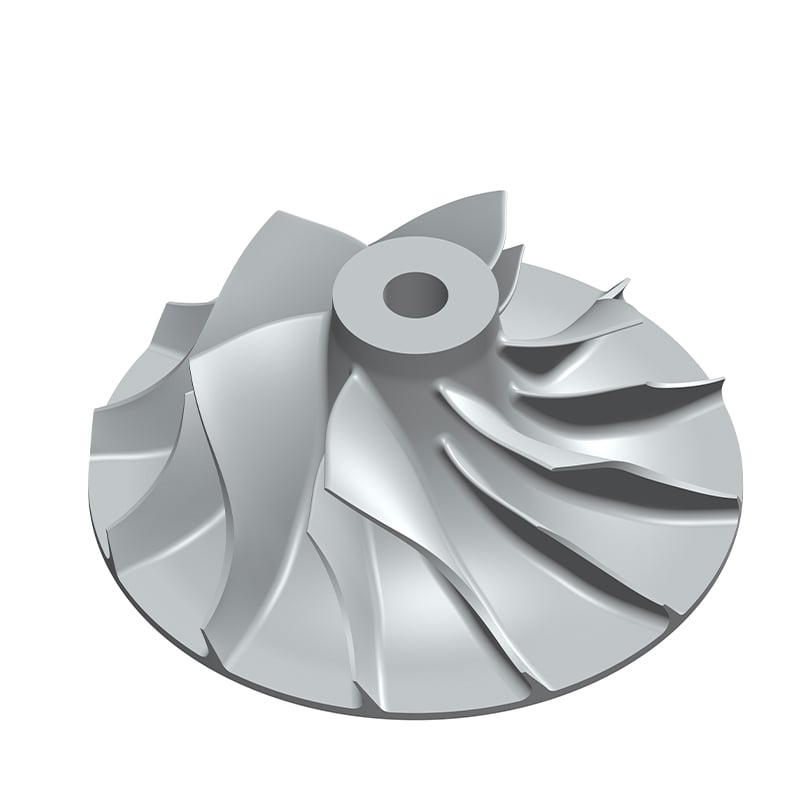

    • Ideal for automotive, aerospace, and electronics industries
    • Boost productivity and reduce production time with fast CNC milling
