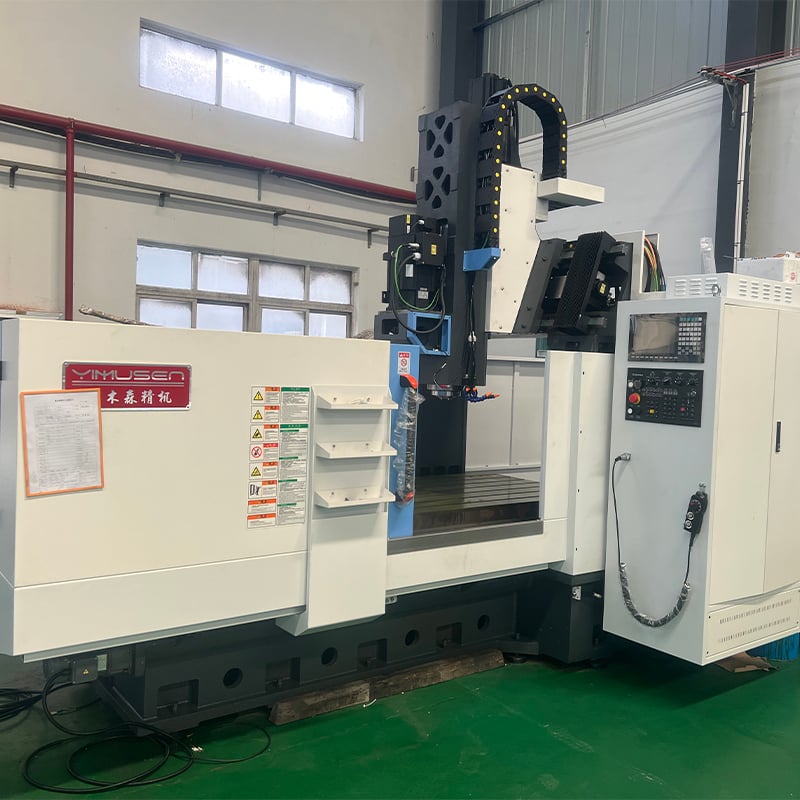

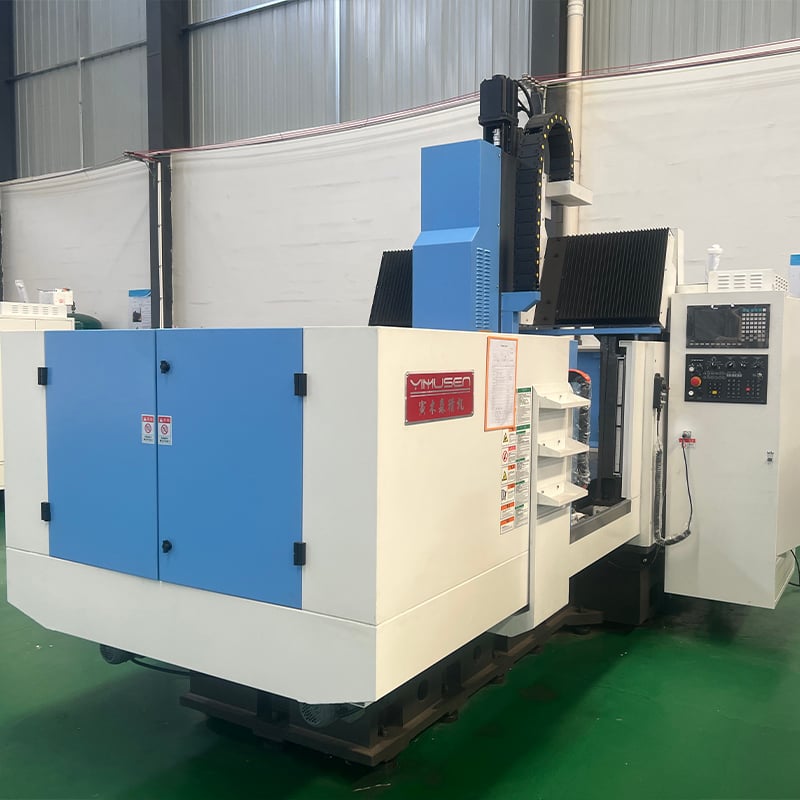

Introducing our revolutionary Gantry 5 axis CNC machine L2518. This cutting-edge manufacturing solution is designed to meet the highest industry standards. With its advanced features, including precise 5 axis movement, this machine offers unparalleled accuracy and efficiency. Perfect for a wide range of applications, it delivers exceptional results in industries such as aerospace, automotive, and more. With its superior functions and capabilities, our Gantry 5 axis CNC machine ensures seamless production and increased productivity. Gain a competitive edge with this powerful machine and experience the advantages it brings to your manufacturing processes.
| Item | Unit | L1013 | L1017B | L2016 | L2318 | L2518 |
| Table Area | mm | 1000×1300 | 1000×1700 | 2200×1800 | 2400×1900 | 2700×2000 |
| X/Y/Z Travel | mm | 850×1200×500 | 850×1600×500 | 2000×1600×650 | 2000×1600×650 | 2500×1800×650 |
| Spindle Face to Table | mm | 150~650 | 200~700 | 100-875 | 100-875 | 100-875 |
| Gantry Width | mm | 1100 | 1100 | 800 | 800 | 800 |
| Max Load | Kg | 600 | 600 | Unlimited theory | Unlimited theory | Unlimited theory |
| Spindel & Guide Model | Taiwan HIWIN/PMI | Taiwan HIWIN/PMI | ||||
| Spindle Power | Kw | 5.5/7.5 | 5.5/7.5 | 7.5/11 | 7.5/11 | 7.5/11 |
| Spindel Max Speed | rpm/min | 8000Belt | 8000Belt | 10000Direct connection | 10000Direct connection | 10000Direct connection |
| Spindle specifications (model/installation diameter) | BT40/150 | BT40/150 | BT40/150 | BT40/150 | BT40/150 | |
| Max Moving Speed | mm/min | 10000 | 8000 | |||
| Max Processing Speed | mm/min | 6000 | 6000 | |||
| Positioning Accuracy | mm | 0.032 | 0.037 | |||
| Repeatability | mm | 0.013 | 0.013 | |||
| CNC System | SYNTEC 21MA | SYNTEC 22MA | ||||
| Servo System | Yaskawa digital AC servo | Yaskawa digital AC servo | ||||
| Spindel Cooling System | Independent cooling (white oil) | Independent cooling (white oil) | ||||
| Cutting Oil System | Double nozzle (cutting fluid, compressed air) | Double nozzle (cutting fluid, compressed air) | ||||
| Lubrication System | Automatic lubrication (58# rail oil) | Automatic lubrication (58# rail oil) | ||||
| Tool Setting | Null | Null | ||||
| Hand Wheel | Japan TOSOKU | Japan TOSOKU | ||||
| T-slot (number x width) | mm | 7-18 | 8-18 | 7-22-275 | 7-22-275 | 7-22-275 |
| Machine Power | Kw | 18 (AC three-phase 380V) | 25 (AC three-phase 380V) | |||
| Protection System | Full | Half | Half | Half | Half | |
| Machine weight | T | 7 | 8 | 10 | 14 | 15 |
| Dimensions (width×depth×height) | mm | 3600×2150×3050 | 4700×2400×3100 | 3800×3200×3380 | 4100×3500×3380 | 4250×3450×3400 |
