    Introducing the Engraving and Milling Machine DX650A, the ultimate solution for all your manufacturing needs. This cutting-edge CNC machinery offers unrivaled precision and efficiency. With its advanced features and versatile applications, it empowers users to bring their creative ideas to life. Experience seamless engraving and milling with this state-of-the-art machine, delivering exceptional results every time. Its powerful functions and user-friendly interface make it perfect for both professionals and hobbyists. Benefit from its countless advantages, such as increased productivity, superior accuracy, and a wide range of customization options. Upgrade your manufacturing capabilities with the DX650A and witness a new level of manufacturing excellence.

    Item Unit DX650 DX860 DX650A DX880
    Worktable mm 600×500 800×600 550×600 800×800
    Travel for X/Y/Z axes mm 600×500×250 680×780×330 500×600×260 800×800×400
    Distance form Spindle nose to table surface mm 100-350 100-430 160-420 100-530
    Gantry Width mm 760 760 620 850
    Maximun Load of table Kg 300 400 300 600
    Spindle specifications ER32(¢18) ER32(¢18) ER32(¢18) ER32(¢18)
    Spindle Power Kw 5.5 5.5 5.5 5.5
    Spindel Max Speed rpm/min 0-24000 0-24000 0-24000 0-24000
    Ball screw, rolling guide Taiwan HIWIN/PMI Taiwan HIWIN/PMI Taiwan HIWIN/PMI Taiwan HIWIN/PMI
    Max Moving Speed mm/min 10000
    Max Processing Speed mm/min 6000
    Positioning Accuracy mm 0.008
    Repeatability mm 0.005

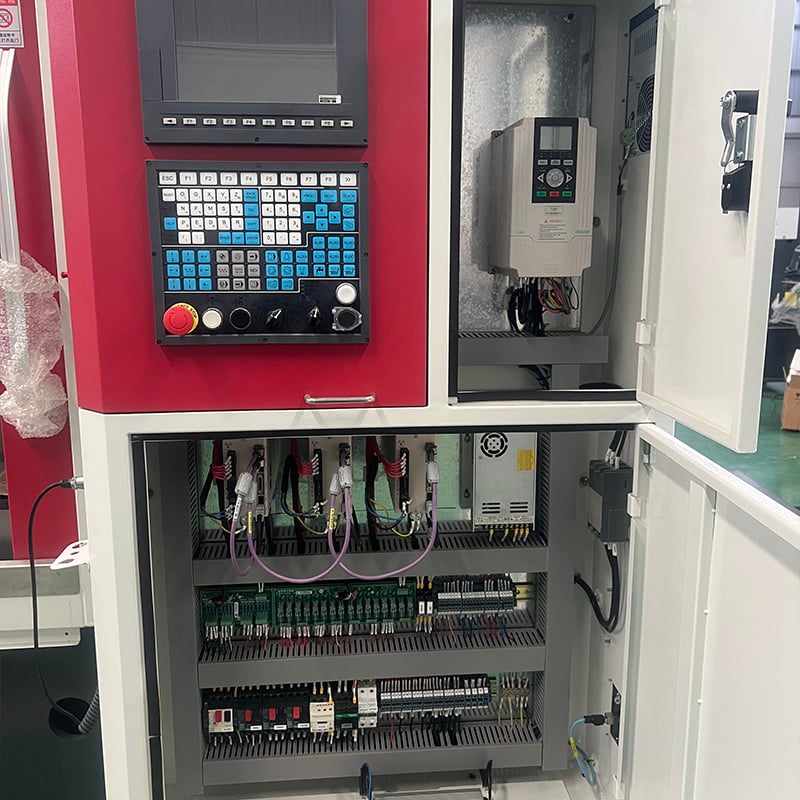

    CNC System SYNTEN  21MA
    Servo System Yaskawa digital AC servo
    Spindel Cooling System Air conditioner
    Cutting Oil System Ring spray, compressed air

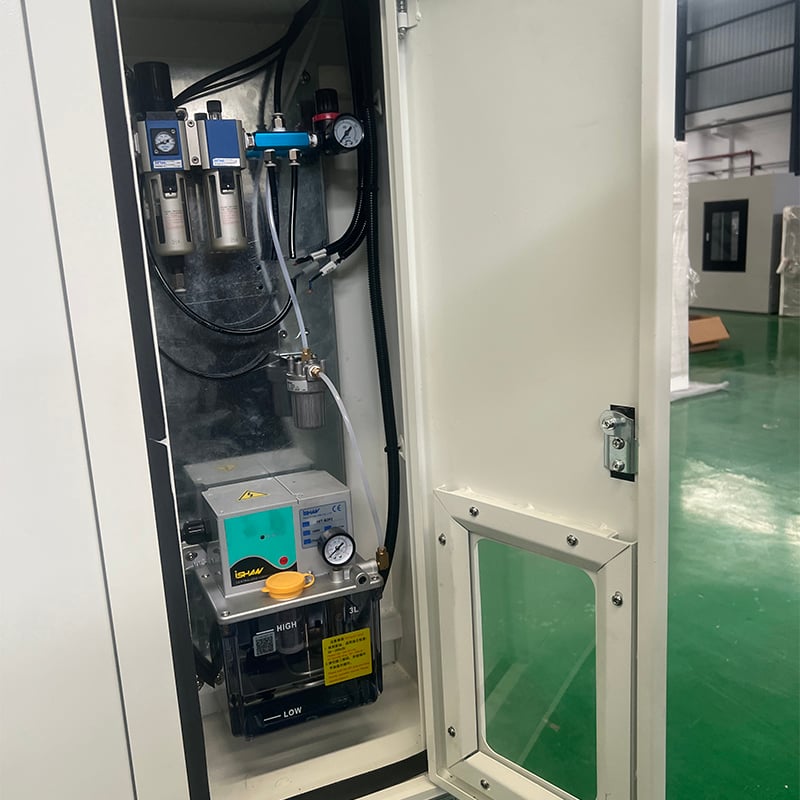

    Lubrication System Automatic lubrication (58# rail oil)
    Tool Setting Japan METORL
    Hand Wheel Japan TOSOKU
    T-slot (number x width) mm 5-16 5-16 6-15-90 7-18-90
    Machine Power Kw 8 10 9 12
    Protection System Full Full Full Full
    Machine weight T 3.5T 4T 3.5T 5T
    Dimensions (width×depth×height) mm 2100×1750×2500 2400×2150×2400 1950×1850×2200 2400×2250×2400

    Product Features

    • Engraving and milling machine DX650A
    • Product Keywords: engraving and milling machine
    • Engraving and milling capabilities in one machine
    • Precision and accuracy in creating detailed designs
    • High-speed performance for efficient production
    • Durable construction for long-lasting use
    • Easy to operate and user-friendly interface

    Application of engraving and milling machine

    • Engraving and milling machine DX650A is ideal for precision cutting and shaping of various materials.
    • Perfect for creating intricate designs and patterns on wood, plastic, metal, and more.
    • Efficiently engrave logos, text, or graphics on promotional items, signage, or personalized gifts.
    • Produce high-quality molds, prototypes, or parts with precise milling capabilities.
    • Great for jewelry making, PCB manufacturing, and model construction.
    • Enhance your craftsmanship and unleash your creativity with this versatile machine.
