    Introducing the DX880 Engraving Milling Machine, the pinnacle of precision and performance in the manufacturing industry. This powerful machine combines advanced features, unparalleled functionality, and exceptional reliability. With its precise engraving capabilities and versatile milling functions, it allows users to effortlessly create intricate designs and achieve flawless results. Whether you're a professional or a hobbyist, the DX880 offers unmatched efficiency, accuracy, and speed, making it the ideal choice for all your engraving and milling needs. Stay ahead of the competition with this cutting-edge machine that guarantees superior quality and unrivaled productivity. Upgrade your manufacturing process today with the DX880 Engraving Milling Machine.

    Item Unit DX650 DX860 DX650A DX880
    Worktable mm 600×500 800×600 550×600 800×800
    Travel for X/Y/Z axes mm 600×500×250 680×780×330 500×600×260 800×800×400
    Distance form Spindle nose to table surface mm 100-350 100-430 160-420 100-530
    Gantry Width mm 760 760 620 850
    Maximun Load of table Kg 300 400 300 600
    Spindle specifications ER32(¢18) ER32(¢18) ER32(¢18) ER32(¢18)
    Spindle Power Kw 5.5 5.5 5.5 5.5
    Spindel Max Speed rpm/min 0-24000 0-24000 0-24000 0-24000
    Ball screw, rolling guide Taiwan HIWIN/PMI Taiwan HIWIN/PMI Taiwan HIWIN/PMI Taiwan HIWIN/PMI
    Max Moving Speed mm/min 10000
    Max Processing Speed mm/min 6000
    Positioning Accuracy mm 0.008
    Repeatability mm 0.005
    CNC System SYNTEN  21MA
    Servo System Yaskawa digital AC servo
    Spindel Cooling System Air conditioner
    Cutting Oil System Ring spray, compressed air
    Lubrication System Automatic lubrication (58# rail oil)
    Tool Setting Japan METORL
    Hand Wheel Japan TOSOKU
    T-slot (number x width) mm 5-16 5-16 6-15-90 7-18-90
    Machine Power Kw 8 10 9 12
    Protection System Full Full Full Full
    Machine weight T 3.5T 4T 3.5T 5T
    Dimensions (width×depth×height) mm 2100×1750×2500 2400×2150×2400 1950×1850×2200 2400×2250×2400

    Product Features

    • High Precision Engraving: Achieve intricate and detailed designs with the DX880 engraving milling machine.
    • Advanced Milling Capability: The machine is equipped with cutting-edge technology for precise and efficient milling operations.
    • Durable Construction: Built with high-quality materials, ensuring long-lasting performance and reliability.
    • User-Friendly Interface: The DX880 features an intuitive interface that allows for easy operation and customization.
    • Versatile Applications: This engraving milling machine is suitable for a wide range of industries, including jewelry making, woodworking, and metalworking.

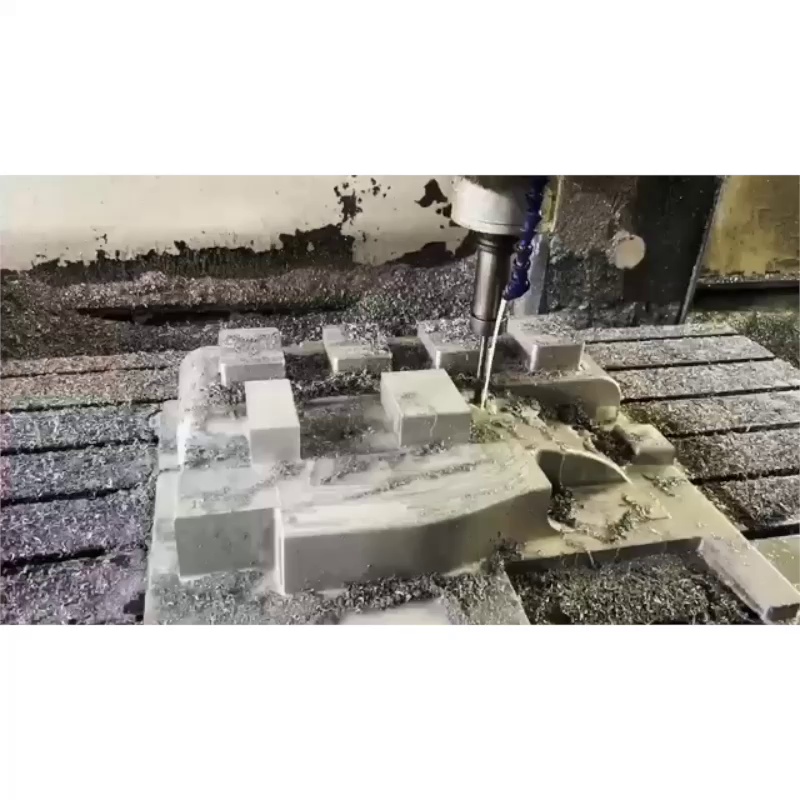

    Application of engraving milling machine

    • Perfect for engraving and milling tasks
    • Ideal for creating intricate designs on various materials
    • Efficiently engraves and mills with high precision
    • Suitable for both professional and hobbyist use
    • Offers versatility in working with different materials
    • Enhances productivity and saves time
    • Reliable and durable for long-term use
    • Easy to operate and control
    • Compact and space-saving design
    • Produces detailed and high-quality results
