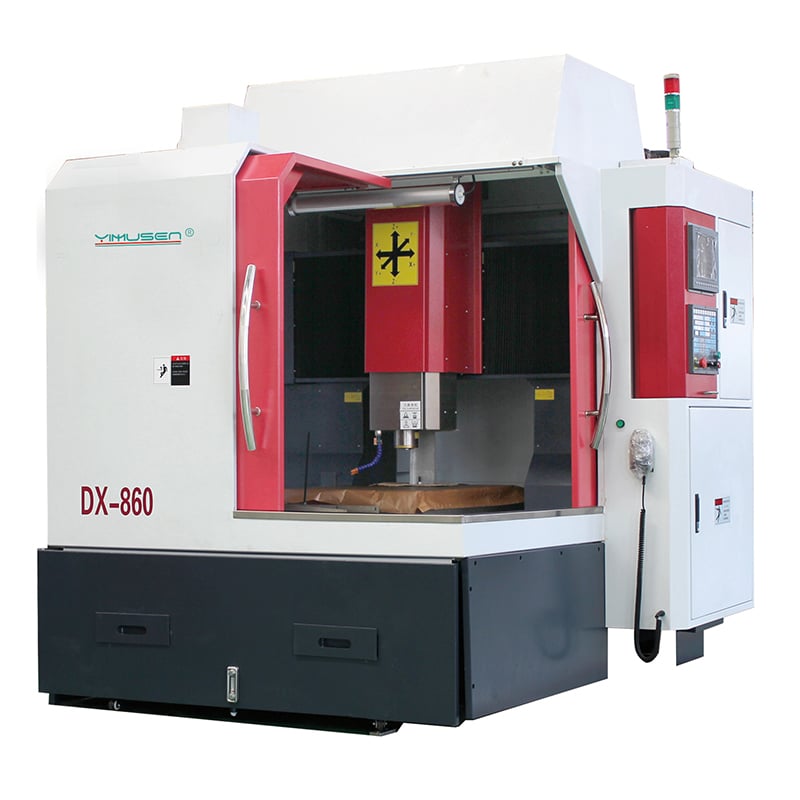

    Introducing the DX860 CNC Mill Engraving, your ultimate solution for precision machining. With its advanced features and cutting-edge technology, this machine offers unparalleled accuracy and efficiency. Perfect for a wide range of applications, from intricate engraving to heavy-duty milling. Experience the seamless functionality of our CNC mill, allowing you to achieve intricate designs with ease. Gain a competitive edge with our product's advantages like high-speed operation, durable construction, and user-friendly interface. Elevate your manufacturing game with the DX860 CNC Mill Engraving!

    Item Unit DX650 DX860 DX650A DX880
    Worktable mm 600×500 800×600 550×600 800×800
    Travel for X/Y/Z axes mm 600×500×250 680×780×330 500×600×260 800×800×400
    Distance form Spindle nose to table surface mm 100-350 100-430 160-420 100-530
    Gantry Width mm 760 760 620 850
    Maximun Load of table Kg 300 400 300 600
    Spindle specifications ER32(¢18) ER32(¢18) ER32(¢18) ER32(¢18)
    Spindle Power Kw 5.5 5.5 5.5 5.5
    Spindel Max Speed rpm/min 0-24000 0-24000 0-24000 0-24000
    Ball screw, rolling guide Taiwan HIWIN/PMI Taiwan HIWIN/PMI Taiwan HIWIN/PMI Taiwan HIWIN/PMI
    Max Moving Speed mm/min 10000
    Max Processing Speed mm/min 6000
    Positioning Accuracy mm 0.008
    Repeatability mm 0.005
    CNC System SYNTEN  21MA
    Servo System Yaskawa digital AC servo
    Spindel Cooling System Air conditioner
    Cutting Oil System Ring spray, compressed air
    Lubrication System Automatic lubrication (58# rail oil)
    Tool Setting Japan METORL
    Hand Wheel Japan TOSOKU
    T-slot (number x width) mm 5-16 5-16 6-15-90 7-18-90
    Machine Power Kw 8 10 9 12
    Protection System Full Full Full Full
    Machine weight T 3.5T 4T 3.5T 5T
    Dimensions (width×depth×height) mm 2100×1750×2500 2400×2150×2400 1950×1850×2200 2400×2250×2400

    Product Features

    • High-precision engraving: The DX860 CNC mill offers precise and accurate engraving capabilities.
    • Advanced CNC technology: Utilizes cutting-edge CNC technology for efficient and precise machining.
    • Versatile milling capabilities: Can be used for a wide range of milling tasks, including engraving.
    • Durable and reliable: Built with high-quality materials to ensure long-lasting performance and reliability.
    • User-friendly interface: Features an intuitive interface that makes it easy to operate and control the CNC mill engraving process.

    Application of CNC mill engraving

    • CNC mill engraving machine ideal for precision machining tasks
    • Perfect for engraving intricate designs onto various materials
    • Efficiently carve detailed patterns on metal, wood, plastic, and more
    • Offers high accuracy and repeatability for consistent results
    • Advanced DX860 technology ensures smooth and precise operation
    • Used in industries such as jewelry making, prototyping, and woodworking
    • Allows customization and personalization of products
    • Enhances productivity and reduces manual labor
    • Easy to use and program with intuitive controls
    • Durable construction ensures long-lasting performance
