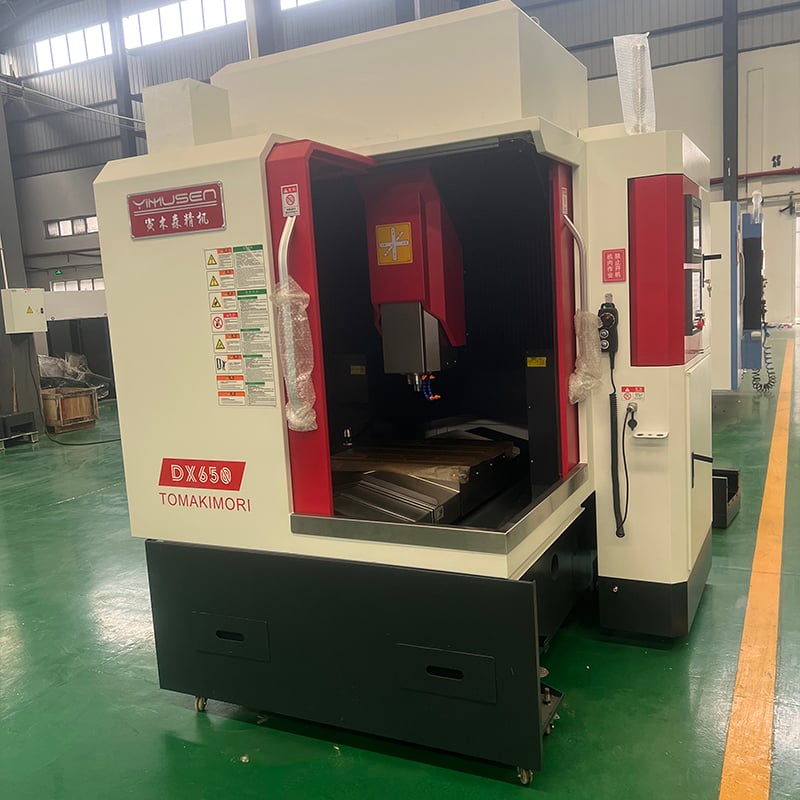

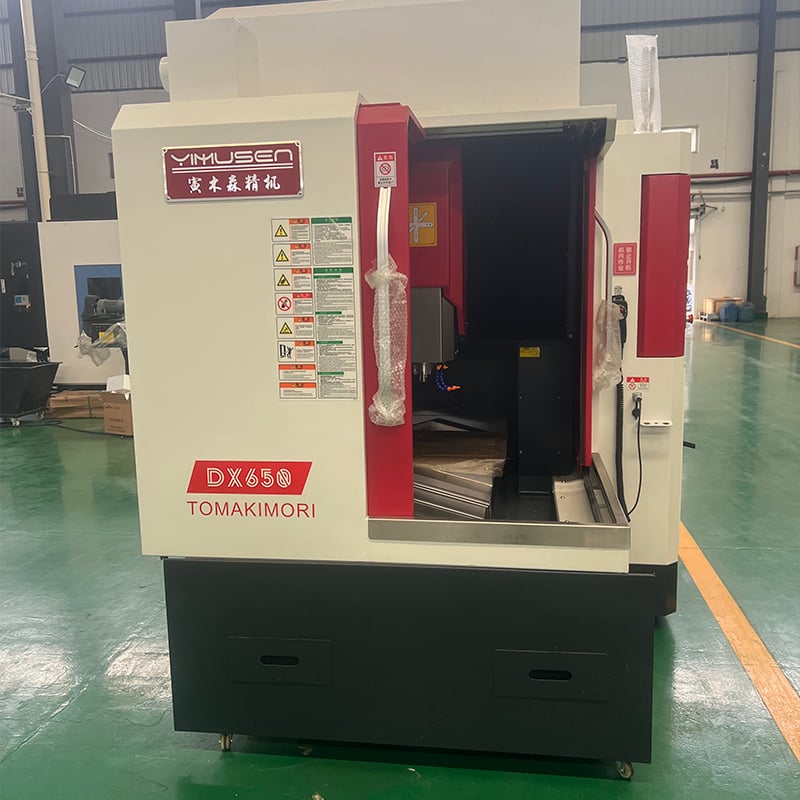

DX650 cnc engraving milling machine

Introducing the DX650 CNC Engraving Milling Machine, designed specifically for the manufacturing industry. With its advanced features and precise functions, this machine is the ultimate solution for all your engraving and milling needs. Whether you're a professional or a hobbyist, our CNC machine offers unrivaled precision and efficiency. Its versatile applications allow you to create intricate designs on various materials effortlessly. Experience the advantage of its user-friendly interface, enabling seamless operation. Upgrade your productivity and unleash your creativity with the DX650 CNC Engraving Milling Machine.

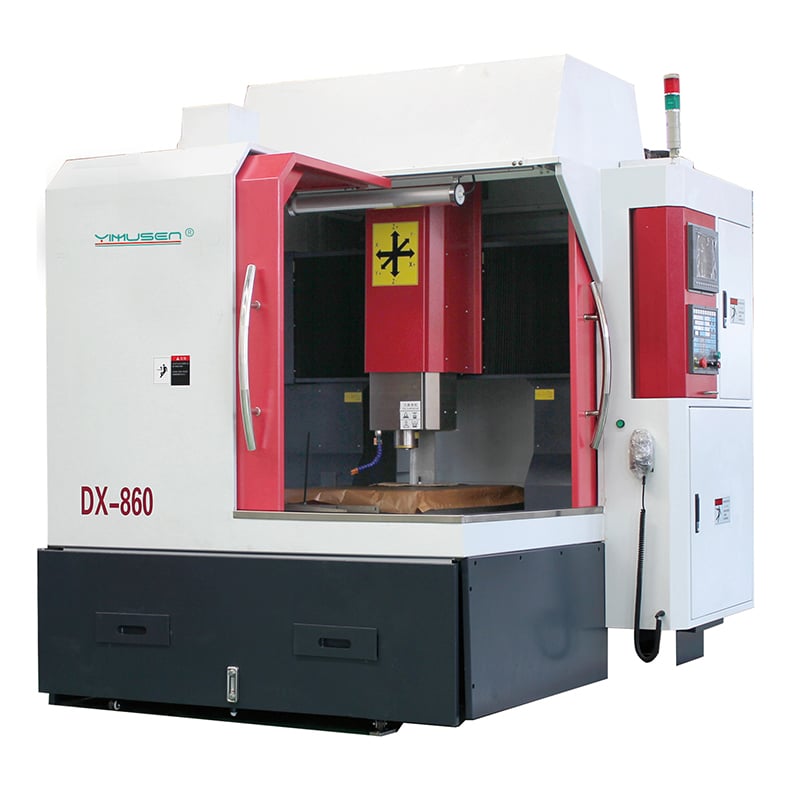

Item	Unit	DX650	DX860	DX650A	DX880
Worktable	mm	600×500	800×600	550×600	800×800
Travel for X/Y/Z axes	mm	600×500×250	680×780×330	500×600×260	800×800×400
Distance form Spindle nose to table surface	mm	100-350	100-430	160-420	100-530
Gantry Width	mm	760	760	620	850
Maximun Load of table	Kg	300	400	300	600
Spindle specifications		ER32(¢18)	ER32(¢18)	ER32(¢18)	ER32(¢18)
Spindle Power	Kw	5.5	5.5	5.5	5.5
Spindel Max Speed	rpm/min	0-24000	0-24000	0-24000	0-24000
Ball screw, rolling guide		Taiwan HIWIN/PMI	Taiwan HIWIN/PMI	Taiwan HIWIN/PMI	Taiwan HIWIN/PMI
Max Moving Speed	mm/min	10000
Max Processing Speed	mm/min	6000
Positioning Accuracy	mm	0.008
Repeatability	mm	0.005

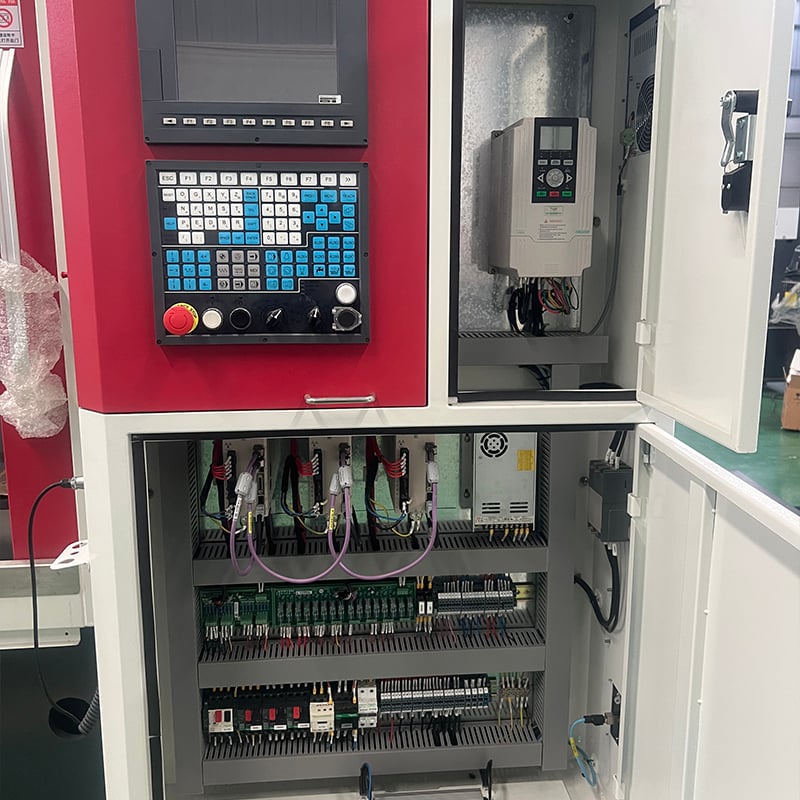

CNC System		SYNTEN 21MA
Servo System		Yaskawa digital AC servo
Spindel Cooling System		Air conditioner
Cutting Oil System		Ring spray, compressed air

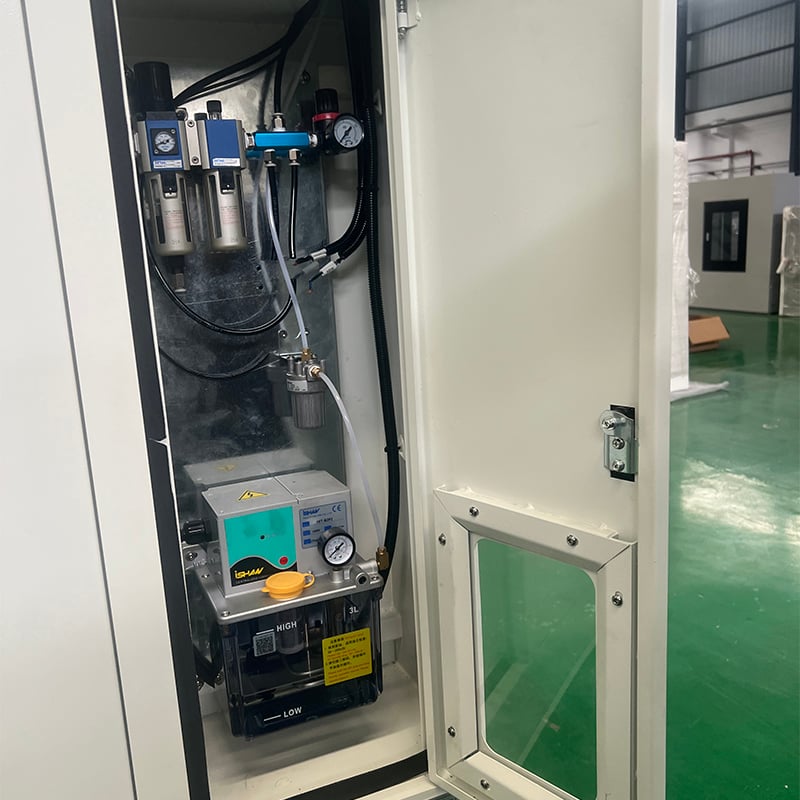

Lubrication System		Automatic lubrication (58# rail oil)
Tool Setting		Japan METORL
Hand Wheel		Japan TOSOKU
T-slot (number x width)	mm	5-16	5-16	6-15-90	7-18-90
Machine Power	Kw	8	10	9	12
Protection System		Full	Full	Full	Full
Machine weight	T	3.5T	4T	3.5T	5T
Dimensions (width×depth×height)	mm	2100×1750×2500	2400×2150×2400	1950×1850×2200	2400×2250×2400

Product Features

High Precision: The DX650 CNC engraving milling machine offers exceptional precision in engraving and milling tasks.
Advanced CNC Technology: Equipped with state-of-the-art CNC technology, this machine ensures accurate and efficient operations.
Versatile Functionality: Suitable for both engraving and milling applications, providing flexibility for various projects.
Compact Design: The DX650 features a compact design, allowing it to be easily installed in limited workspace areas.
Efficient Core Extraction: The machine's core can be extracted without expansion, simplifying maintenance and reducing downtime.
