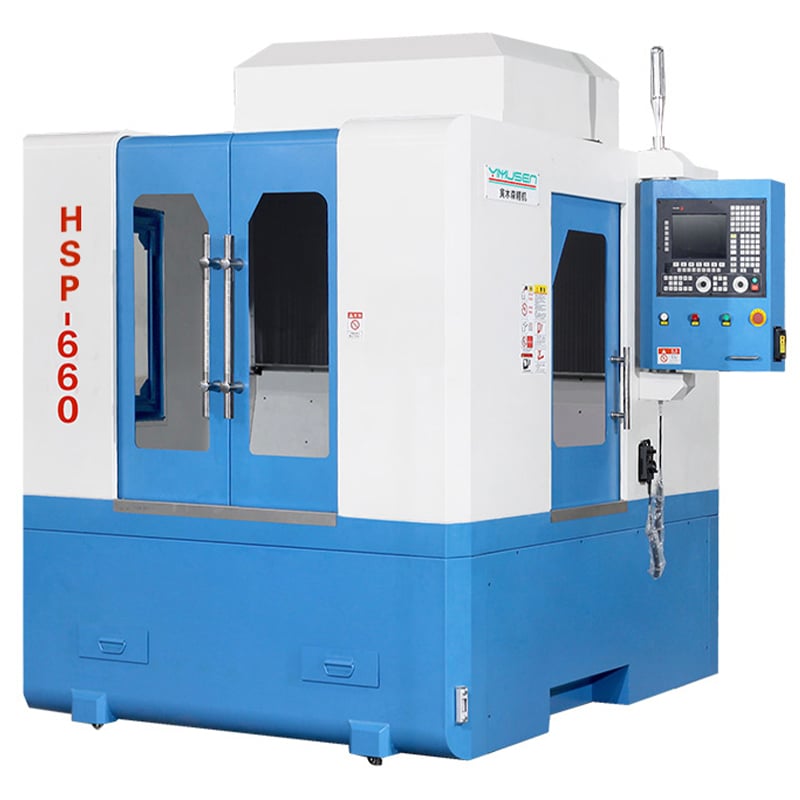

Introducing our CNC gear shaping machine HSP660, designed specifically for the manufacturing of cnc machinery. With its cutting-edge features and versatile applications, this machine guarantees precision and efficiency in gear shaping. Its advanced functions enable smooth operation and seamless integration within your production line. Gain a competitive edge with our CNC gear shaping machine's superior performance and unmatched advantages. Upgrade your manufacturing process today and experience enhanced productivity like never before.
| Item | Unit | HSP660 | HSP690 |
| Worktable | mm | 600×600 | 600×900 |
| Travel for X/Y/Z axes | mm | 700×600×300 | 700×900×300 |
| Distance form Spindle nose to table surface | mm | 50-350 | 160-460 |
| Gantry Width | mm | 780 | 780 |
| Maximun Load of table | Kg | 400 | 400 |
| Spindle specifications | BT30 | BT30 | |
| Spindle Power | Kw | 5.5 | 5.5 |
| Spindel Max Speed | rpm/min | 0-30000 | 0-30000 |
| Ball screw, rolling guide | Taiwan HIWIN/PMI | Taiwan HIWIN/PMI | |
| Max Moving Speed | mm/min | 10000 | |
| Max Processing Speed | mm/min | 8000 | |
| Positioning Accuracy | mm | 0.008 | |
| Repeatability | mm | 0.005 | |
| CNC System | FAGOR 8055I/FL-EN | ||
| Servo System | Yaskawa digital AC servo | ||
| Spindel Cooling System | Air conditioner | ||
| Cutting Oil System | Ring spray, compressed air | ||
| Lubrication System | Automatic lubrication (58# rail oil) | ||
| Tool Setting | Japan METORL | ||
| Hand Wheel | Japan TOSOKU | ||
| T-slot (number x width) | mm | 5-14 | 5-18 |
| Machine Power | Kw | 10kw (AC three-phase 380V) | |
| Protection System | Full | Full | |
| Machine weight | T | 3.5 | 5 |
| Dimensions (width×depth×height) | mm | 2500×2000×2500 | 2700×2000×2700 |
