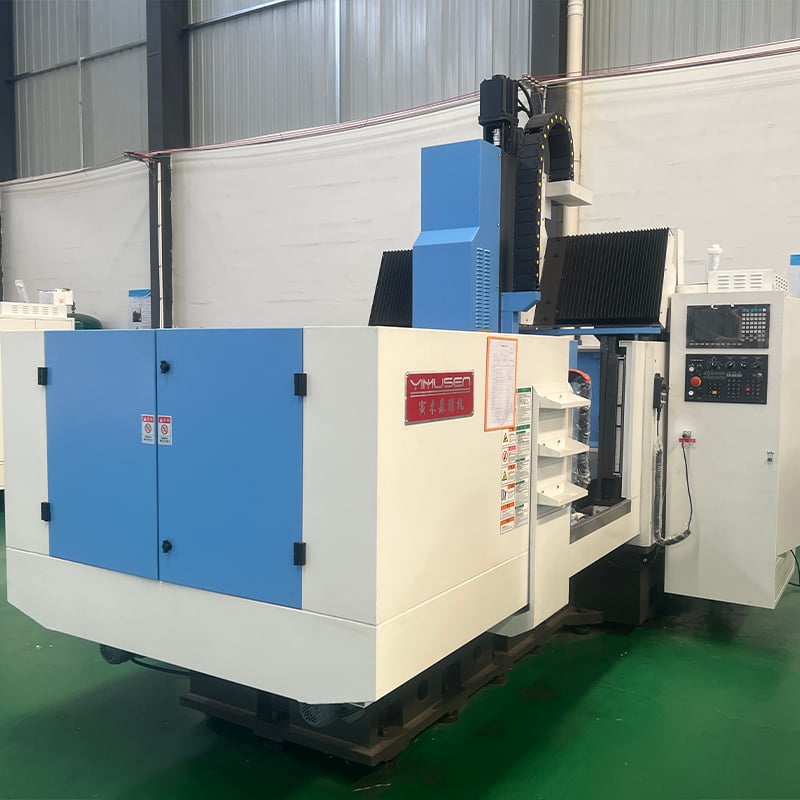

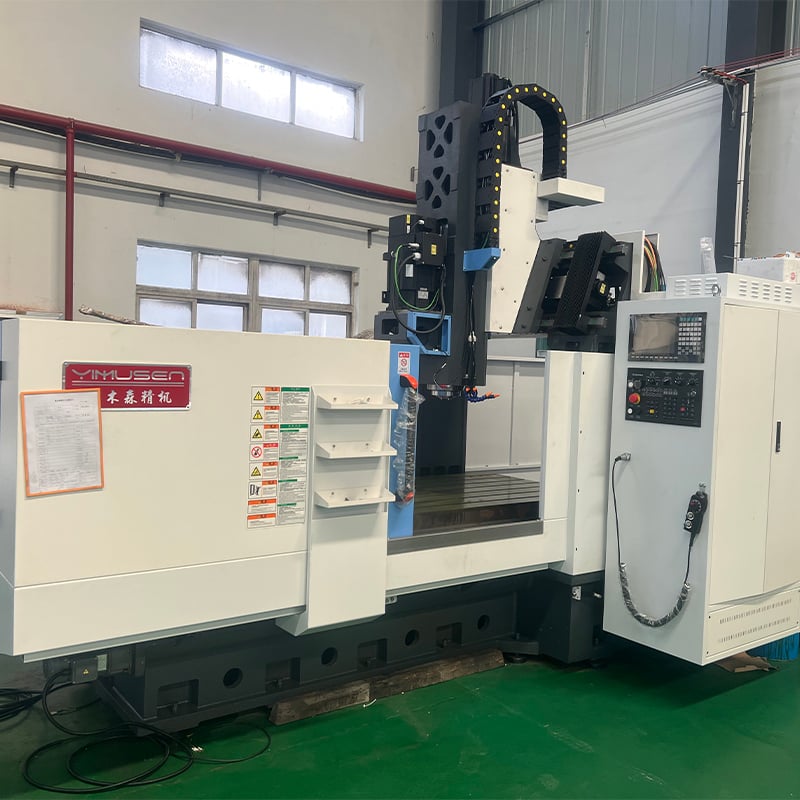

CNC gantry milling machine 1017B

Introducing the CNC Gantry Milling Machine 1017B, designed specifically for the manufacturing industry. With its advanced features and superior functionality, this machine offers unparalleled precision and efficiency. From large-scale production to intricate designs, it effortlessly handles various applications. Benefit from its robust structure, high-speed processing, and exceptional accuracy. Experience the advantage of reduced production time and increased productivity. Elevate your manufacturing process with the CNC Gantry Milling Machine 1017B.

Item	Unit	L1013	L1017B	L2016	L2318	L2518
Table Area	mm	1000×1300	1000×1700	2200×1800	2400×1900	2700×2000
X/Y/Z Travel	mm	850×1200×500	850×1600×500	2000×1600×650	2000×1600×650	2500×1800×650
Spindle Face to Table	mm	150~650	200~700	100-875	100-875	100-875
Gantry Width	mm	1100	1100	800	800	800
Max Load	Kg	600	600	Unlimited theory	Unlimited theory	Unlimited theory
Spindel & Guide Model		Taiwan HIWIN/PMI		Taiwan HIWIN/PMI
Spindle Power	Kw	5.5/7.5	5.5/7.5	7.5/11	7.5/11	7.5/11
Spindel Max Speed	rpm/min	8000Belt	8000Belt	10000Direct connection	10000Direct connection	10000Direct connection
Spindle specifications (model / installation diameter)		BT40/150	BT40/150	BT40/150	BT40/150	BT40/150
Max Moving Speed	mm/min	10000		8000
Max Processing Speed	mm/min	6000		6000
Positioning Accuracy	mm	0.032		0.037
Repeatability	mm	0.013		0.013
CNC System		SYNTEC 21MA		SYNTEC 22MA
Servo System		Yaskawa digital AC servo		Yaskawa digital AC servo
Spindel Cooling System		Independent cooling (white oil)		Independent cooling (white oil)
Cutting Oil System		Double nozzle (cutting fluid, compressed air)		Double nozzle (cutting fluid, compressed air)

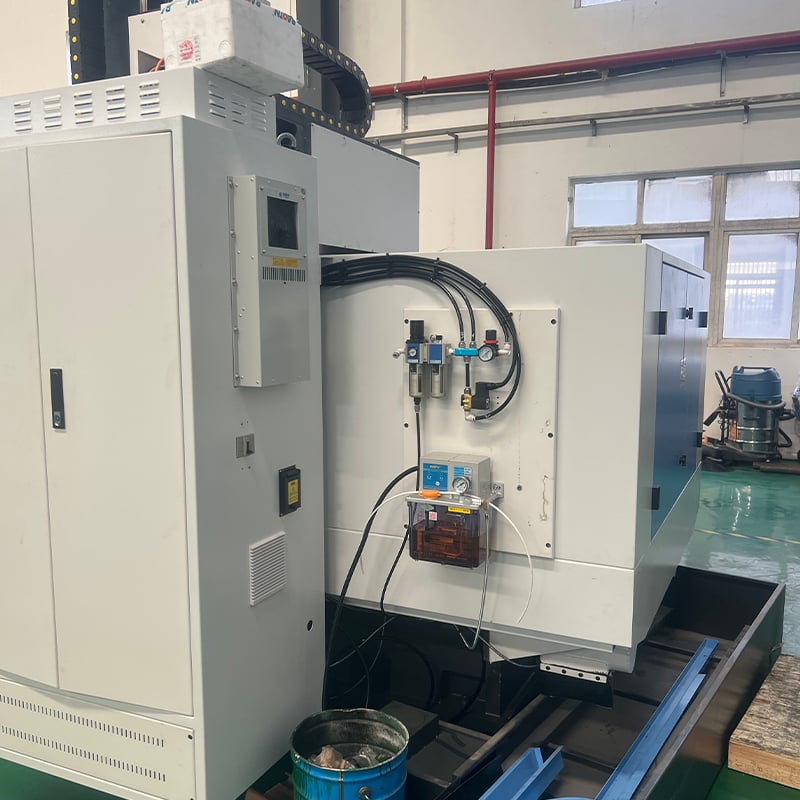

Lubrication System		Automatic lubrication (58# rail oil)		Automatic lubrication (58# rail oil)
Tool Setting		Null		Null
Hand Wheel		Japan TOSOKU		Japan TOSOKU
T-slot (number x width)	mm	7-18	8-18	7-22-275	7-22-275	7-22-275
Machine Power	Kw	18 (AC three-phase 380V)		25 (AC three-phase 380V)
Protection System		Full	Half	Half	Half	Half
Machine weight	T	7	8	10	14	15
Dimensions (width×depth×height)	mm	3600×2150×3050	4700×2400×3100	3800×3200×3380	4100×3500×3380	4250×3450×3400

Product Features

High Precision: The CNC gantry milling machine 1017B delivers exceptional precision in milling operations.
Sturdy Construction: This machine is built with a robust gantry structure, ensuring stability and durability.
Efficient Performance: With its advanced CNC technology, the milling machine offers efficient and accurate milling operations.
Versatile Capabilities: The 1017B can handle a wide range of materials and sizes, making it suitable for various milling applications.
Easy to Use: Despite its advanced features, this machine is user-friendly and can be operated with ease.
