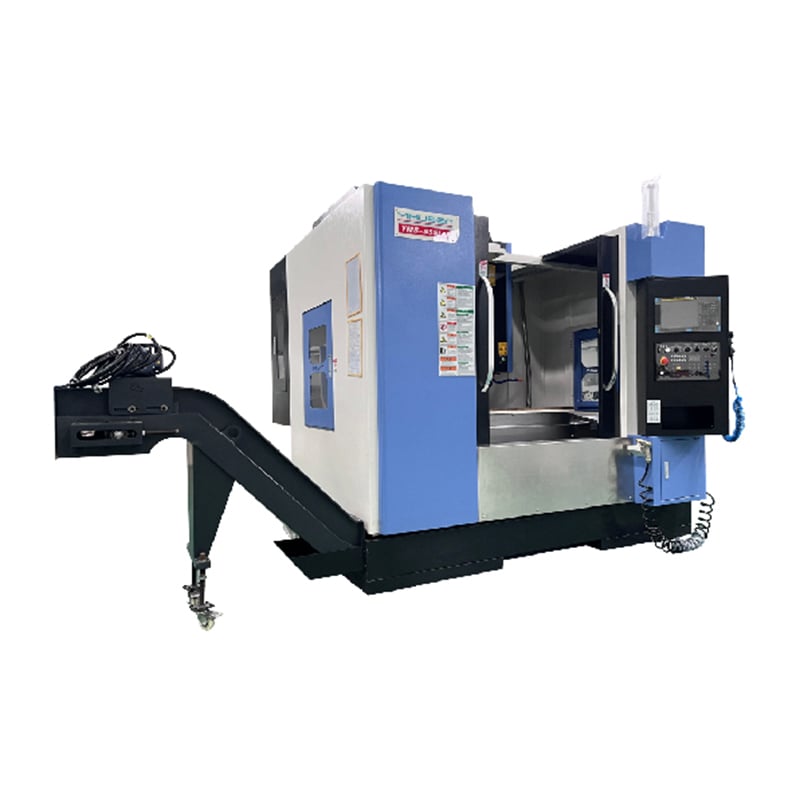

• 5 axis vertical machining center VMC-6540L
  • 5 axis vertical machining center VMC-6540L

    • 5 axis vertical machining center VMC-6540L

    Introducing the VMC-6540L, a cutting-edge 5 axis vertical machining center revolutionizing the manufacturing industry. With its advanced features and functions, this machine delivers unparalleled precision and efficiency. From intricate parts to complex prototypes, this VMC guarantees exceptional results. Its versatility spans across various applications, making it a must-have for any production line. Gain a competitive edge with the VMC-6540L's superior performance, reliability, and cost-effectiveness. Elevate your manufacturing standards with this game-changing innovation.

    Item Model Unit VMC-6540L VMC-850L VMC-855L VMC-1160L
    Worktable mm 800×400 1000×500 1000×500 1200×600
    Travel for X/Y/Z axes mm 650/400/500 800/500/500 800/550/550 1100/600/600
    Distance form Spindle nose to table surface mm 100-600 100-600 150-700 120-720
    Distance from spindle center to column guide surface mm 460 570 570 645
    Maximun Load of table kg 350 500 600 1000
    T-slot (number x width) mm 3-14-100 5-18-90 5-18-90 5-18-100
    Positioning Accuracy mm 0.01/300 0.01 0.01/300 0.012/300
    Repeatability mm 0.008 0.008 0.008 0.008/300
    Max. Spindle speed rpm 8000or10000 8000or10000 8000or10000 8000or10000
    Spindle specifications (model / installation diameter) BT40/120 BT40/140 BT40/150 BT40/150
    Ball screw, rolling guide Taiwan HIWIN/PMI Taiwan HIWIN/PMI Taiwan HIWIN/PMI Taiwan HIWIN/PMI
    Screw specifications (XYZ) 3216/3216/3216 4016/4016/4016 4016/4016/4016 4012/4012/4012
    Roller guide (XYZ) mm 30/30/30 35/35/35 35/45/45 45/45/45
    Spindel Cooling System Air conditioner
    Lubrication System Automatic lubrication (58# rail oil)
    Cutting Oil System Ring spray, compressed air
    Vertical disc magazine（ATC） pcs 16T 24T 24T 24T
    Max.Tool (diameter / length / weight) 90/300/8kg 78/300/8kg 78/300/8kg 78/300/8kg
    Tool exchanging manner Pneumatic
    Tool change time sec 1.8 1.8 1.8 1.8
    CNC SYNTEC  22MA FANUC  0i MF Pius（5） FANUC  0i MF Pius（5） FANUC  0i MF Pius（5）
    Spindle Power Kw 5.5/7.5 βiI 8/12000（7.5/11） βiI 8/12000（7.5/11） βiI 12/10000（11/15）
    Servo motor（XYZ） Nm AM11×2+AM18B βiSc 12/3000×2+βiS 22B/3000 βiSc 12/3000×2+βiS 22B/3000 βiS 22/3000×2+βiS 30B/2000
    Air pressure Kg/Cm² 6 6 6 6
    Air source flow m³/min ≥0.3 ≥0.3 ≥0.3 ≥0.3
    Machine Power KVA 15 20 20 30
    Dimensions (width×depth×height) mm 2320×1800×2200 2300×1800×2300 2700×2400×2700 3150×2450×2750
    Machine weight kg 3800 5000 5500 6500

    Product Features

    • 5-axis capability for versatile machining
    • Vertical design for efficient use of space
    • High-precision machining with advanced technology
    • Large work envelope for handling larger parts
    • Easy extraction of the core without the need for expansion

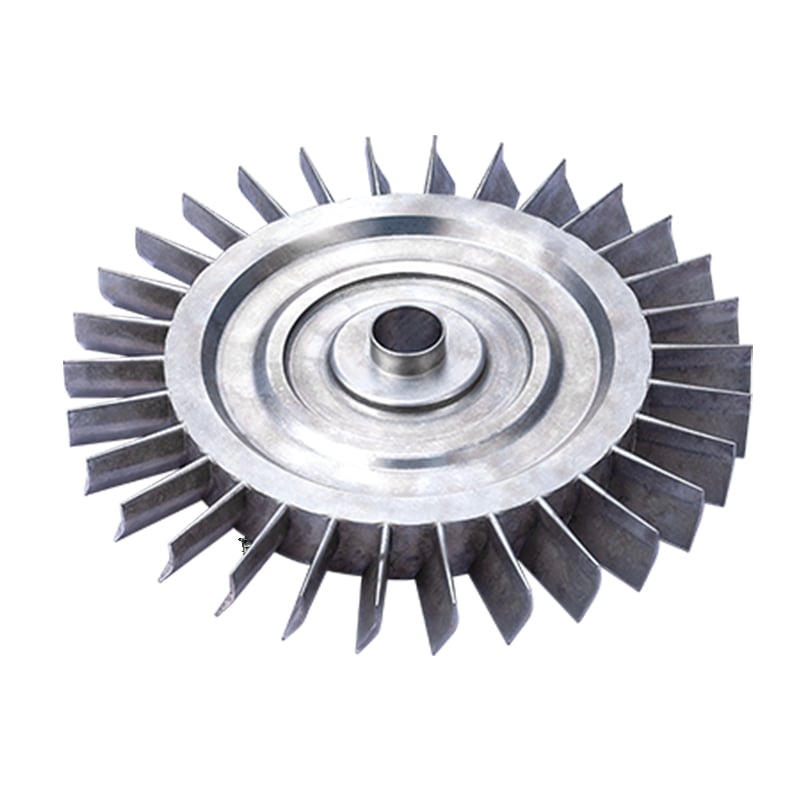

    Application of 5 axis vertical machining center

    • Advanced 5-axis vertical machining center for precision engineering.
    • Perfect for complex machining operations in aerospace and automotive industries.
    • Efficiently cuts, drills, and mills various materials with high accuracy.
    • Enables simultaneous machining on multiple sides, reducing production time.
    • Offers versatility and flexibility in creating intricate and precise components.
