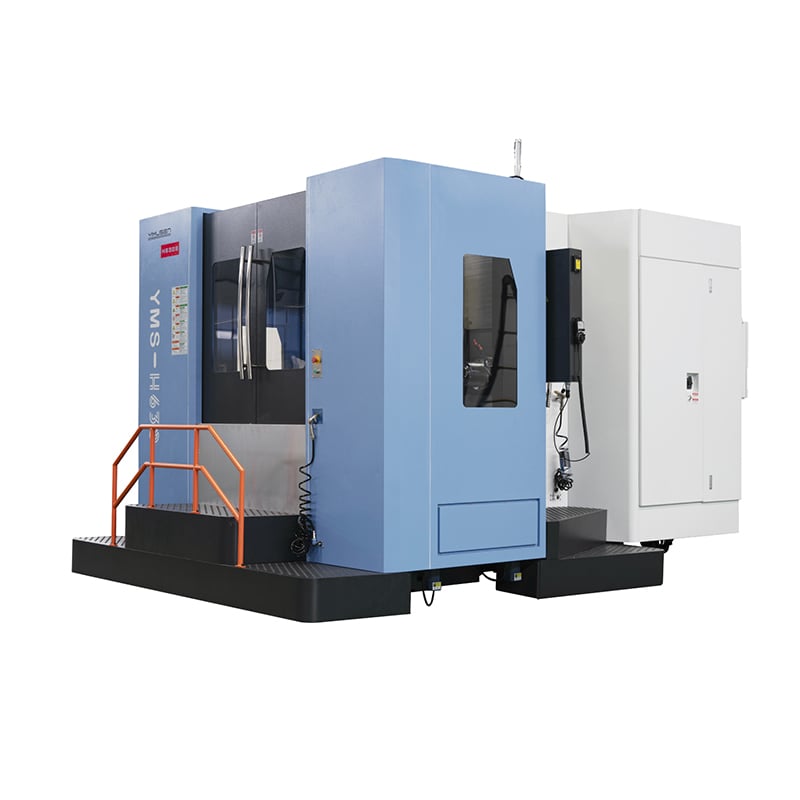

4 axis cnc horizontal machining center YMSH50S

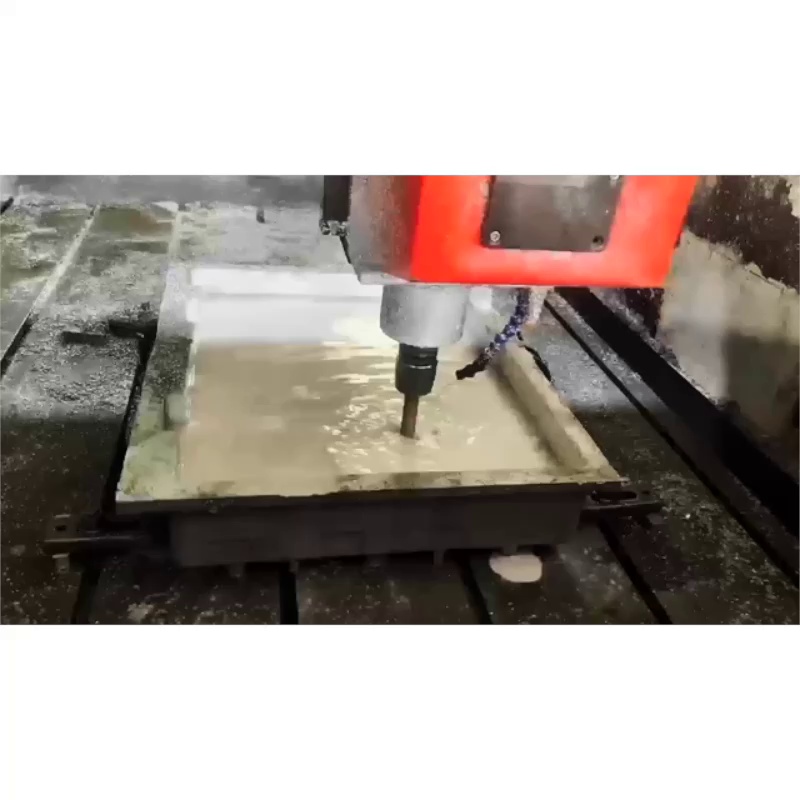

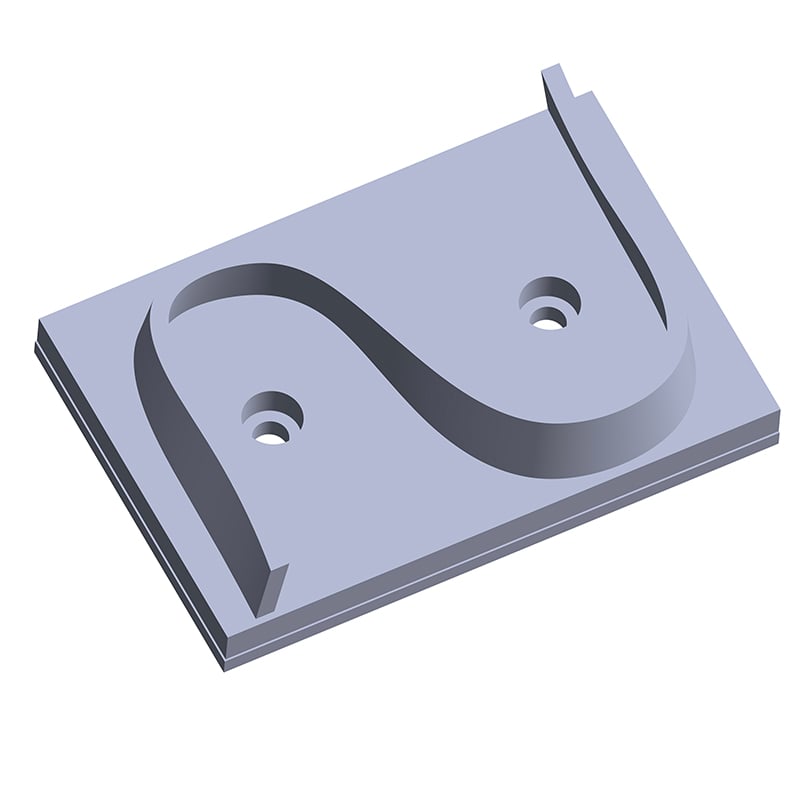

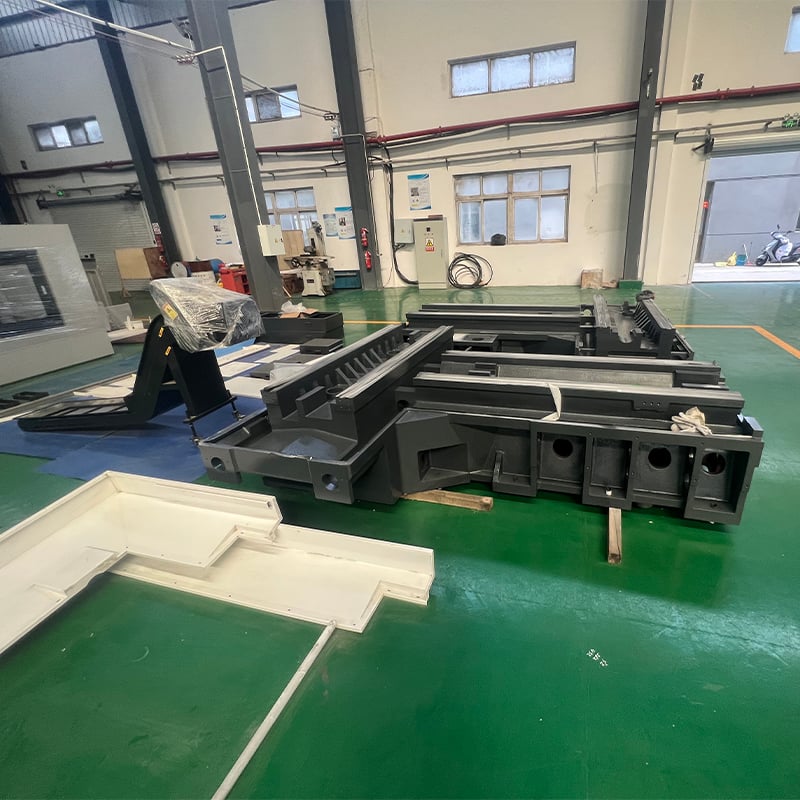

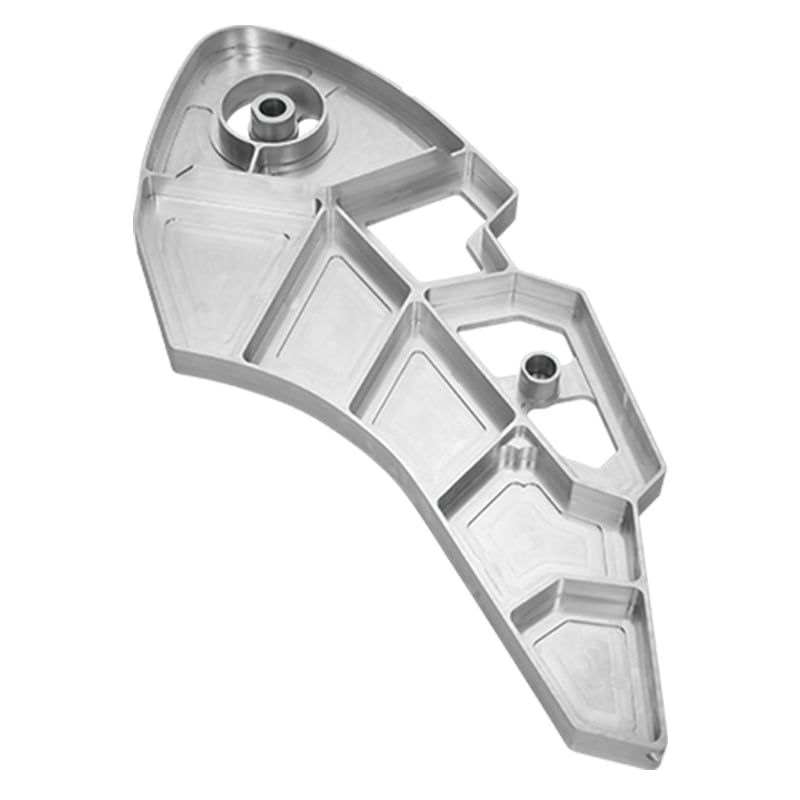

Introducing the 4-axis CNC horizontal machining center YMSH50S, designed specifically for the manufacturing industry. With its advanced features and superior functions, this machine is perfect for a wide range of applications. Enjoy precise and efficient machining, thanks to the 4-axis capability, allowing for complex operations. Experience increased productivity and accuracy, while benefiting from the added advantage of its horizontal design. Stay ahead of the competition with the YMSH50S and revolutionize your manufacturing process.

机型项目 Machine Type 单位Unit YMSH50S YMSH63S YMSH80S YMSH100S
工作台Worktable
工作台尺寸Worktable mm 500×500 630×630 800×800 1000×1000
工作台最大负重Maximun Load of table kg 800 1200 2000 3000
工作台T型槽T-slot (number x width) mm 5-18-100 5-18-125 5-22-160 7-22-125
定位精度Positioning Accuracy sec 10 10 10 10
重复定位精度Repeatability sec 2 2 2 2
加工范围Processing range
X/Y/Z轴行程Travel for X/Y/Z axes mm 700/600/580 1000/770/900 1300/1000/1000 1600/1100/1100
主轴端面至工作台中心距离Distance form Spindle nose to table surface mm 225-1125 175-1075 200-1200 200-1200
主轴中心线至工作台面距离Distance from spindle center to table surface mm 110-880 110-880 150-1150 150-1150
主轴Spindle
主轴规格Spindle specifications BT50 BT50 BT50 BT50
主轴最高转速Max. Spindle speed rpm 6000 6000 6000 6000
主轴电机功率Spindle Mootor Power Kw 15/18.5 15/18.5 15/18.5 15/18.5
驱动进给Drive feed
快速进给速度(X/Y/ZFast feed speed m/min 24/20/24 24/20/24 24/20/20 24/20/20
快速进给速度(BFast feed speedB r/min 10 10 10 10
刀库Tool magazine
圆盘式刀库Vertical disc magazineATC pcs 24T 24T 24T 24T
平均换刀时间Tool change time sec 4.01 4.01 4.01 4.01
最大刀具重量Max.Tool weight kg 18 18 18 18
最大刀具直径(满刀)Max.Tool diafully loaded mm 112 112 112 112
最大刀具直径(临空刀)Max.Tool diano adjacent mm 200 200 200 200
最大刀具长度Max.Tool length mm 300 300 300 300
刀具交换方式Tool exchanging manner Pneumatic/random
精度Precision
定位精度(X/Y/ZPositioning Accuracy mm 0.01 0.01 0.012 0.012
重复定位精度(X/Y/ZRepeatability mm 0.006 0.006 0.008 0.008
气源Air supply
空气压力Air pressure Kg/Cm² 6-8 6-8 6-8 6-8
气源流量Air source flow m³/min 280 280 280 280
其它Other
机械重量Machine weight kg 12500 13000 18000 18500
电力消耗Machine Power KVA 35 35 45 45
外形尺寸Dimensions (width×depth×height) mm 4720×3430×3350 4720×3430×3350 5210×4125×3700 5210×4125×3700
滚珠丝杠,滚动导轨Ball screw, rolling guide Taiwan HIWIN/PMI Taiwan HIWIN/PMI Taiwan HIWIN/PMI Taiwan HIWIN/PMI
丝杠规格(XYZScrew specifications (XYZ) 3216/3216/3216 4016/4016/4016 4016/4016/4016 4012/4012/4012
滚柱导轨(XYZRoller guide (XYZ) mm 55/55/55 55/55/55 55/55/55 55/55/55
主轴冷却系统Spindel Cooling System Air conditioner
润滑系统Lubrication System Automatic lubrication (68# rail oil)
切削冷却系统Cutting Oil System Ring spray, compressed air
控制器系统CNC FANUC  0i MF Pius5 FANUC  0i MF Pius5 FANUC  0i MF Pius5 FANUC  0i MF Pius5
