    Introducing our 2518L High Speed CNC Milling Machine, designed for the manufacturing of CNC machinery. This advanced machine offers exceptional speed, precision, and versatility. Its high-speed capabilities enable rapid and accurate milling, ensuring efficient production. With a wide range of applications, it can handle various materials and complex designs. Equipped with cutting-edge features, it guarantees superior performance and reliability. Gain a competitive edge with our 2518L, the ultimate solution for all your CNC milling needs.

    Item Unit 1311L 1613L 2015L 2518L 3016L
    Table Area mm 1300×1000 1600×1200 2100×1450 2600×1600 3200×1400
    X/Y/Z Travel mm 1300×1100×520 1600×1350×520 2000×1600×600 2500×1800×650 3000×1600×650
    Spindle Face to Table mm 130~650 160~670 160-760 200-850 180-830
    Gantry Width mm 1100 1350 1610 1800 1600
    Max Load Kg 2000 2500 3000 3000 4500
    Spindel & Guide Model Taiwan HIWIN or PMI  45mm Taiwan HIWIN or PMI  55mm
    Spindle Power Kw 7.5/11 7.5/11 7.5/11 7.5/11 7.5/11
    Spindel Max Speed rpm/min 10000Direct connection 10000Direct connection 10000Direct connection 10000Direct connection 10000Direct connection
    Spindle specifications (model / installation diameter) BT40/150 BT40/150 BT40/150 BT40/150 BT40/150
    Max Moving Speed mm/min 10000 10000
    Max Processing Speed mm/min 6000 6000
    Positioning Accuracy mm 0.032 0.037
    Repeatability mm 0.013 0.013
    CNC System SYNTEC 22MA SYNTEC 22MA
    Servo System Syntec digital AC servo Yaskawa digital AC servo
    Spindel Cooling System Independent cooling (white oil) Independent cooling (white oil)
    Cutting Oil System Double nozzle (cutting fluid, compressed air) Double nozzle (cutting fluid, compressed air)
    Lubrication System Automatic lubrication (58# rail oil) Automatic lubrication (58# rail oil)
    Vertical disc magazine（ATC） pcs 24T 24T 24T 24T 24T
    Max.Tool (diameter / length / weight) 78/300/8kg 78/300/8kg 78/300/8kg 78/300/8kg 78/300/8kg
    Tool exchanging manner Pneumatic
    Tool change time sec 1.8 1.8 1.8 1.8 1.8
    Hand Wheel Japan TOSOKU Japan TOSOKU
    T-slot (number x width) mm 7-20 7-20 7-20 7-20 9-20
    Machine Power Kw 28 (AC three-phase 380V) 30 (AC three-phase 380V)
    Protection System Full Full Full Full Full
    Machine weight T 9 10 16 19 21
    Dimensions (width×depth×height) mm 3800×2100×3000 4200×2200×2800 5600×2800×3500 7000×3000×3000 7500×3000×3000

    Product Features

    • High speed: The 2518L CNC milling machine offers exceptional speed capabilities, allowing for faster and more efficient machining processes.
    • Accuracy: This machine is designed to deliver precise and accurate results, ensuring the highest level of quality in milling operations.
    • CNC technology: With its CNC capabilities, the 2518L enables automated and computer-controlled milling, ensuring consistent and reliable performance.
    • Expanded core: This milling machine can extract the core without the need for expansion, making it a versatile and efficient tool for various milling tasks.
    • Reliability: The 2518L is built to be durable and reliable, ensuring long-lasting performance and minimizing downtime for maintenance or repairs.

    Application of high speed CNC milling machine

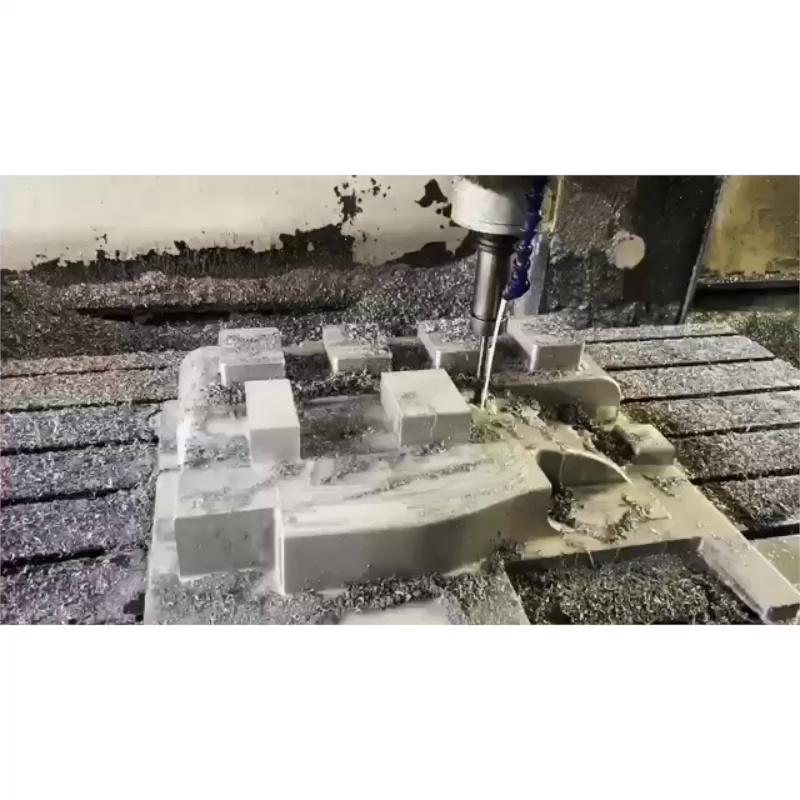

    • High-speed CNC milling machine for precision machining
    • Perfect for rapid prototyping and small-scale production

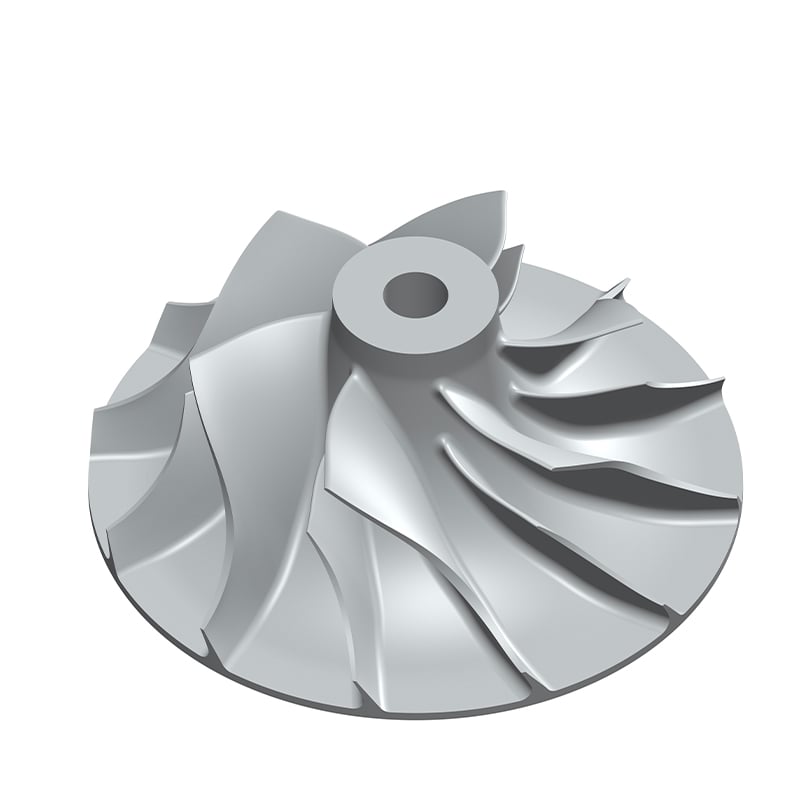

    • Ideal for creating intricate and complex designs with high accuracy

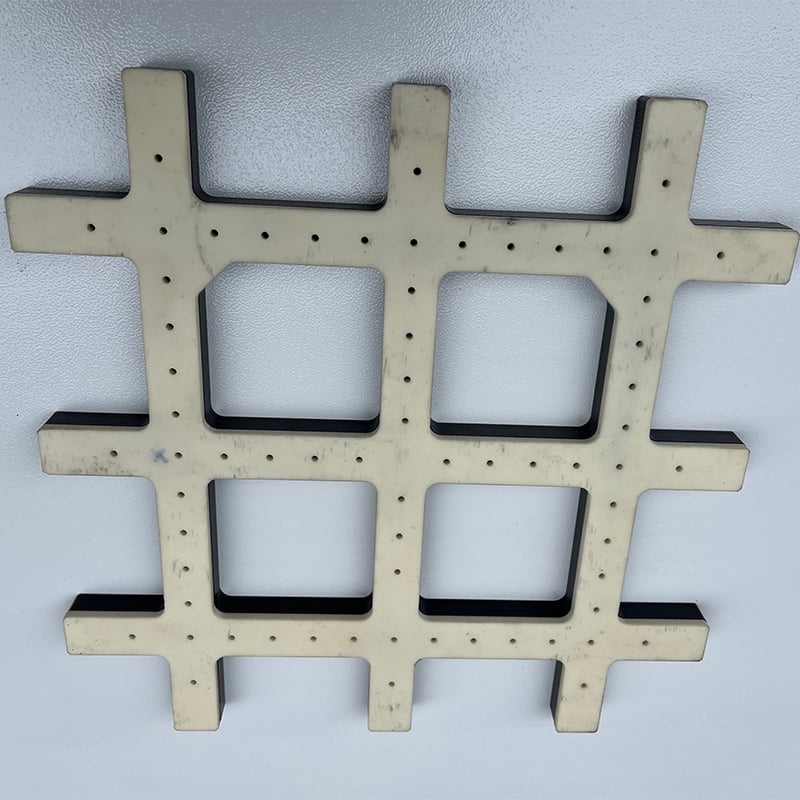

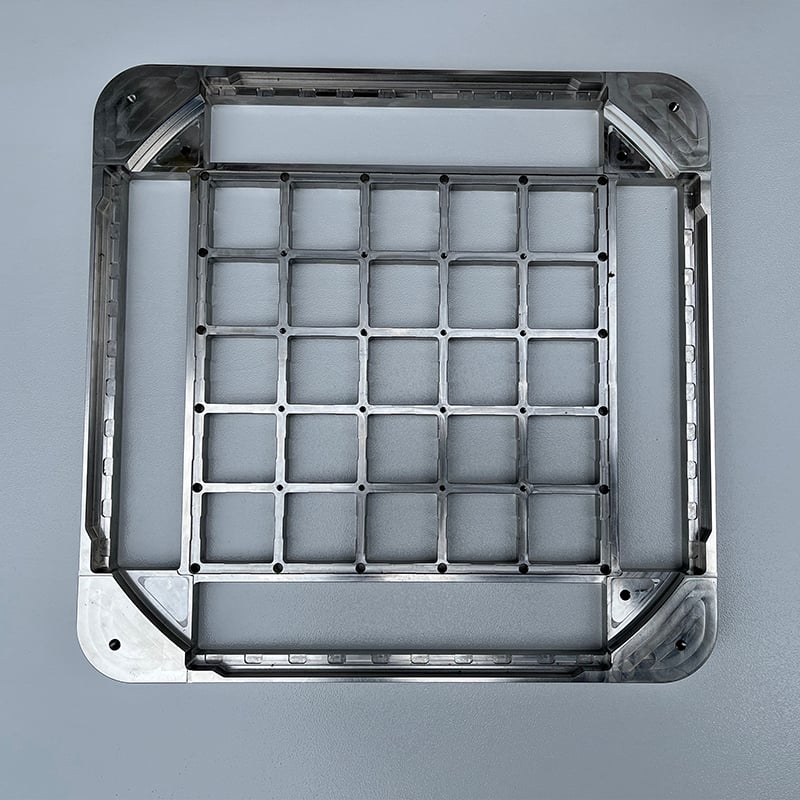

    • Efficiently cuts and shapes various materials like metal, plastic, and wood
    • Suitable for industries such as aerospace, automotive, and electronics
