    Introducing our top-notch 2015L CNC milling machine center! Engineered for the manufacturing industry, this cutting-edge machinery guarantees exceptional precision and efficiency. With its advanced features and functions, it is perfectly suited for a wide range of applications. Experience the advantage of effortless operations, enhanced productivity, and superior quality output. Invest in our CNC milling machine center and revolutionize your manufacturing process today!

    Item Unit 1311L 1613L 2015L 2518L 3016L
    Table Area mm 1300×1000 1600×1200 2100×1450 2600×1600 3200×1400
    X/Y/Z Travel mm 1300×1100×520 1600×1350×520 2000×1600×600 2500×1800×650 3000×1600×650
    Spindle Face to Table mm 130~650 160~670 160-760 200-850 180-830
    Gantry Width mm 1100 1350 1610 1800 1600
    Max Load Kg 2000 2500 3000 3000 4500
    Spindel & Guide Model Taiwan HIWIN or PMI  45mm Taiwan HIWIN or PMI  55mm
    Spindle Power Kw 7.5/11 7.5/11 7.5/11 7.5/11 7.5/11
    Spindel Max Speed rpm/min 10000Direct connection 10000Direct connection 10000Direct connection 10000Direct connection 10000Direct connection
    Spindle specifications (model / installation diameter) BT40/150 BT40/150 BT40/150 BT40/150 BT40/150
    Max Moving Speed mm/min 10000 10000
    Max Processing Speed mm/min 6000 6000
    Positioning Accuracy mm 0.032 0.037
    Repeatability mm 0.013 0.013
    CNC System SYNTEC 22MA SYNTEC 22MA
    Servo System Syntec digital AC servo Yaskawa digital AC servo
    Spindel Cooling System Independent cooling (white oil) Independent cooling (white oil)
    Cutting Oil System Double nozzle (cutting fluid, compressed air) Double nozzle (cutting fluid, compressed air)
    Lubrication System Automatic lubrication (58# rail oil) Automatic lubrication (58# rail oil)
    Vertical disc magazine（ATC） pcs 24T 24T 24T 24T 24T
    Max.Tool (diameter / length / weight) 78/300/8kg 78/300/8kg 78/300/8kg 78/300/8kg 78/300/8kg
    Tool exchanging manner Pneumatic
    Tool change time sec 1.8 1.8 1.8 1.8 1.8
    Hand Wheel Japan TOSOKU Japan TOSOKU
    T-slot (number x width) mm 7-20 7-20 7-20 7-20 9-20
    Machine Power Kw 28 (AC three-phase 380V) 30 (AC three-phase 380V)
    Protection System Full Full Full Full Full
    Machine weight T 9 10 16 19 21
    Dimensions (width×depth×height) mm 3800×2100×3000 4200×2200×2800 5600×2800×3500 7000×3000×3000 7500×3000×3000

    Product Features

    • High Precision: The 2015L CNC milling machine center ensures accurate and precise milling operations.
    • Advanced Technology: Incorporates cutting-edge CNC technology for efficient and automated milling processes.
    • Versatile Functionality: Capable of performing a wide range of milling tasks, making it suitable for various industries.
    • Durable Construction: Built with high-quality materials to ensure long-lasting performance and reliability.
    • User-Friendly Interface: Equipped with an intuitive interface that allows easy operation and control of the milling machine center.

    Application of CNC milling machine center

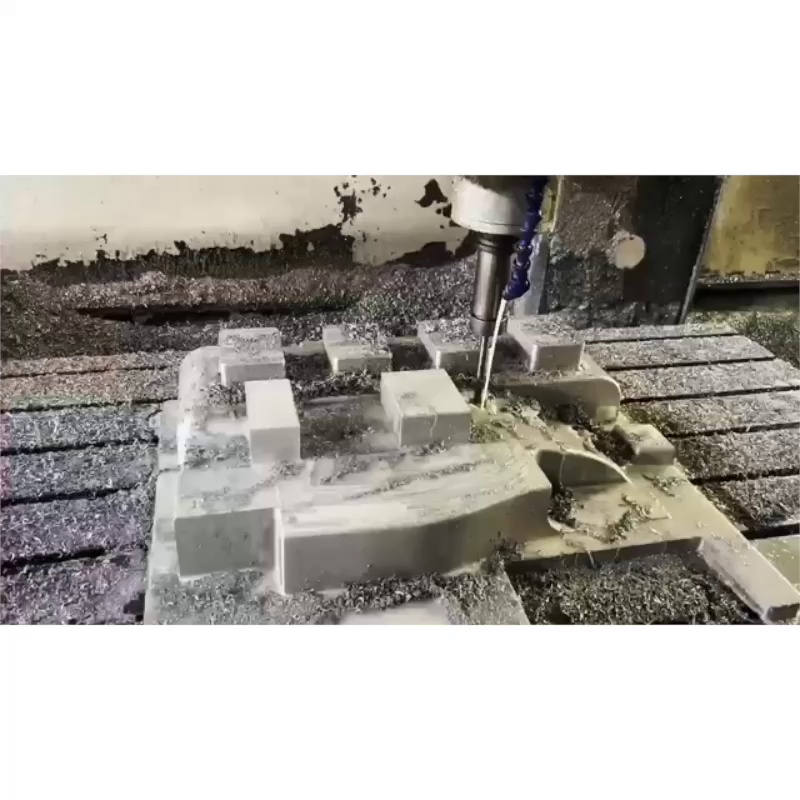

    1. The 2015L CNC milling machine center is ideal for the precision machining of various materials.
    2. It offers accurate and efficient milling operations for industries such as aerospace, automotive, and electronics.
    3. With its advanced CNC technology, it ensures high productivity and excellent machining results.

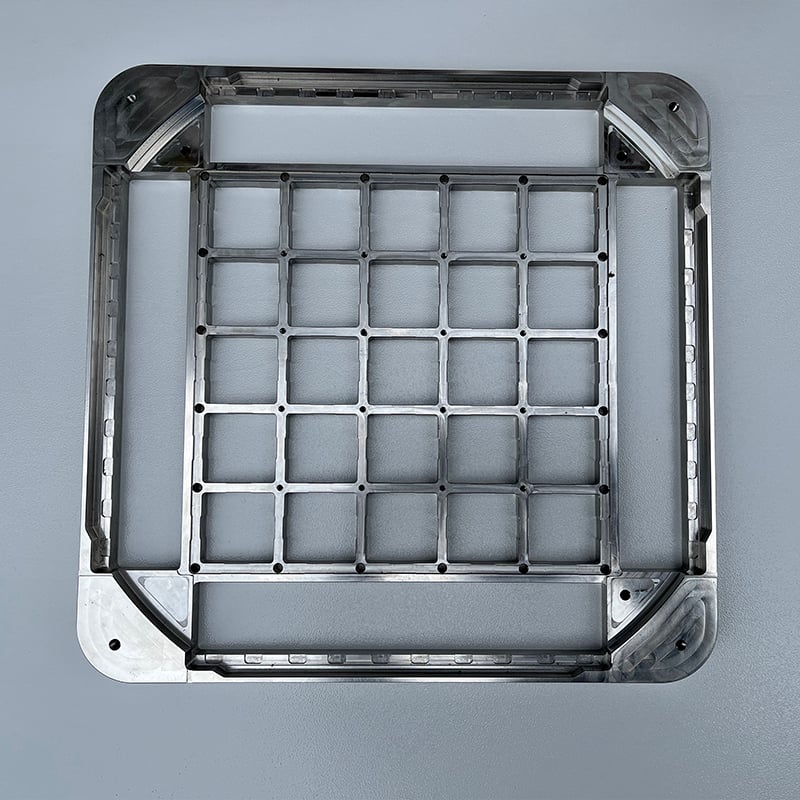

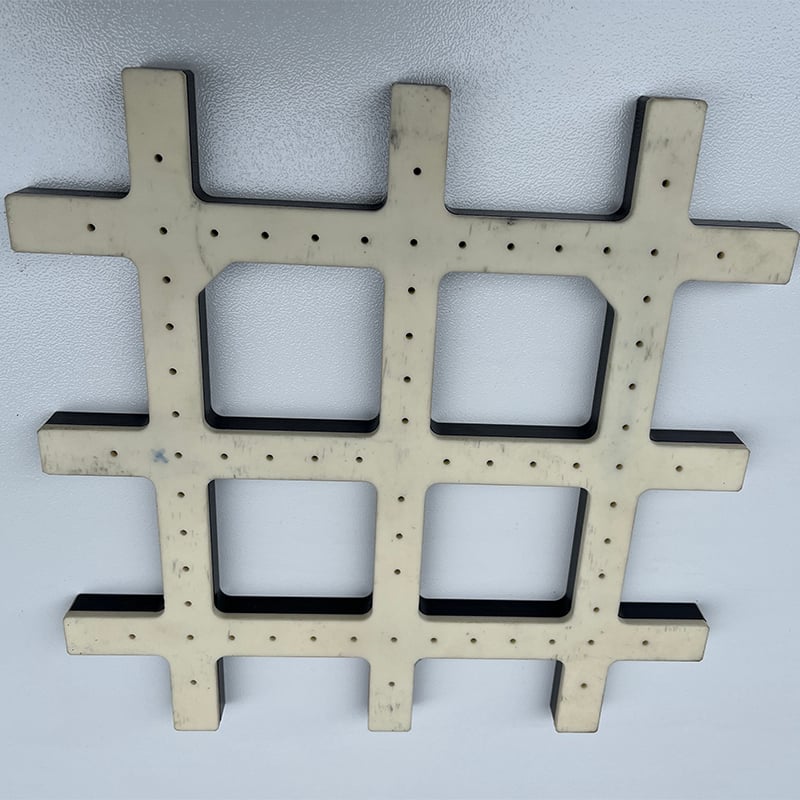

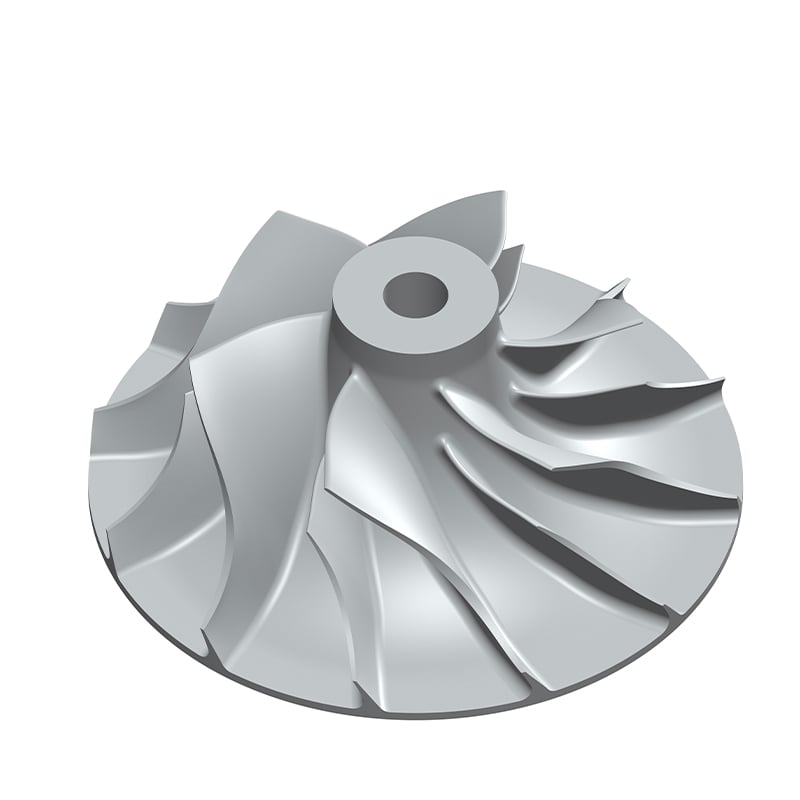

    4. Perfect for creating complex components, prototypes, and molds with utmost precision.
    5. It is equipped with a user-friendly interface, making it suitable for both experienced operators and beginners.
