    Introducing our 1311L high speed CNC milling machine, designed specifically for the manufacturing industry. With its exceptional speed and precision, this machine is a game-changer. Its advanced features and functions allow for seamless operations and remarkable efficiency. Whether you need to create intricate designs or complete large-scale projects, our high speed CNC milling machine is up for the task. Gain a competitive edge with its superior performance and maximize your productivity. Experience the advantages of cutting-edge technology in CNC machinery.

    Item Unit 1311L 1613L 2015L 2518L 3016L
    Table Area mm 1300×1000 1600×1200 2100×1450 2600×1600 3200×1400
    X/Y/Z Travel mm 1300×1100×520 1600×1350×520 2000×1600×600 2500×1800×650 3000×1600×650
    Spindle Face to Table mm 130~650 160~670 160-760 200-850 180-830
    Gantry Width mm 1100 1350 1610 1800 1600
    Max Load Kg 2000 2500 3000 3000 4500
    Spindel & Guide Model Taiwan HIWIN or PMI  45mm Taiwan HIWIN or PMI  55mm
    Spindle Power Kw 7.5/11 7.5/11 7.5/11 7.5/11 7.5/11
    Spindel Max Speed rpm/min 10000Direct connection 10000Direct connection 10000Direct connection 10000Direct connection 10000Direct connection
    Spindle specifications (model / installation diameter) BT40/150 BT40/150 BT40/150 BT40/150 BT40/150
    Max Moving Speed mm/min 10000 10000
    Max Processing Speed mm/min 6000 6000
    Positioning Accuracy mm 0.032 0.037
    Repeatability mm 0.013 0.013
    CNC System SYNTEC 22MA SYNTEC 22MA
    Servo System Syntec digital AC servo Yaskawa digital AC servo
    Spindel Cooling System Independent cooling (white oil) Independent cooling (white oil)
    Cutting Oil System Double nozzle (cutting fluid, compressed air) Double nozzle (cutting fluid, compressed air)
    Lubrication System Automatic lubrication (58# rail oil) Automatic lubrication (58# rail oil)
    Vertical disc magazine（ATC） pcs 24T 24T 24T 24T 24T
    Max.Tool (diameter / length / weight) 78/300/8kg 78/300/8kg 78/300/8kg 78/300/8kg 78/300/8kg
    Tool exchanging manner Pneumatic
    Tool change time sec 1.8 1.8 1.8 1.8 1.8
    Hand Wheel Japan TOSOKU Japan TOSOKU
    T-slot (number x width) mm 7-20 7-20 7-20 7-20 9-20
    Machine Power Kw 28 (AC three-phase 380V) 30 (AC three-phase 380V)
    Protection System Full Full Full Full Full
    Machine weight T 9 10 16 19 21
    Dimensions (width×depth×height) mm 3800×2100×3000 4200×2200×2800 5600×2800×3500 7000×3000×3000 7500×3000×3000

    Product Features

    • High Speed: The 1311L CNC milling machine offers exceptional speed capabilities, allowing for rapid and efficient machining processes.
    • Precision Milling: This machine delivers precise results, ensuring accuracy and consistency in every milling operation.
    • Advanced CNC Technology: Equipped with cutting-edge CNC technology, the 1311L offers enhanced control and automation for improved productivity.
    • Durable Construction: Built with high-quality materials, this milling machine ensures long-lasting performance and reliability.
    • Compact Design: The 1311L features a compact and space-saving design, making it suitable for various workshop environments.

    Application of high speed cnc milling machine

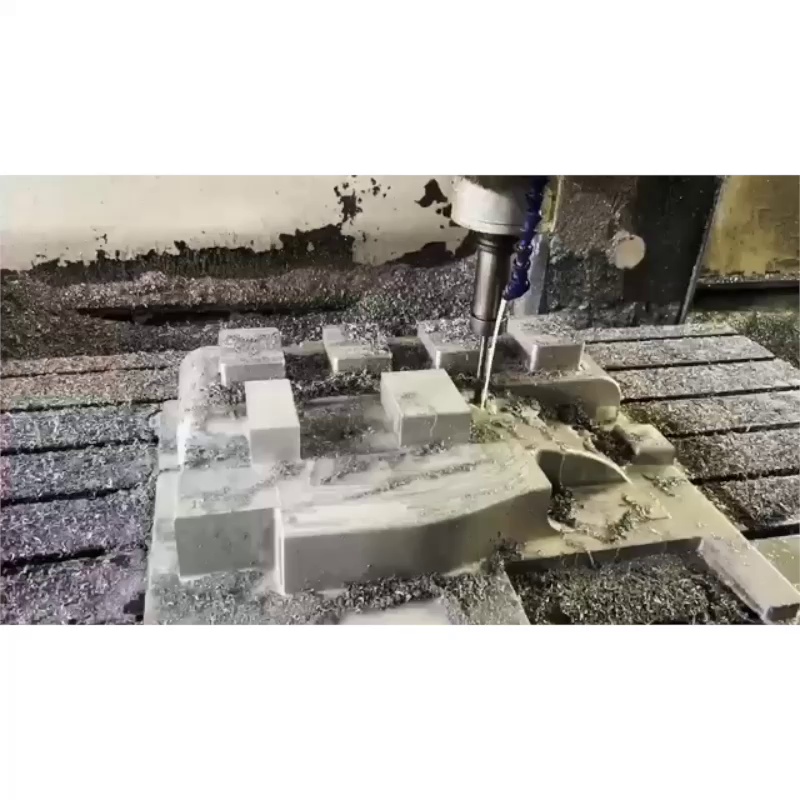

    • Efficient and precise machining of various materials
    • Ideal for industries requiring high-speed milling operations

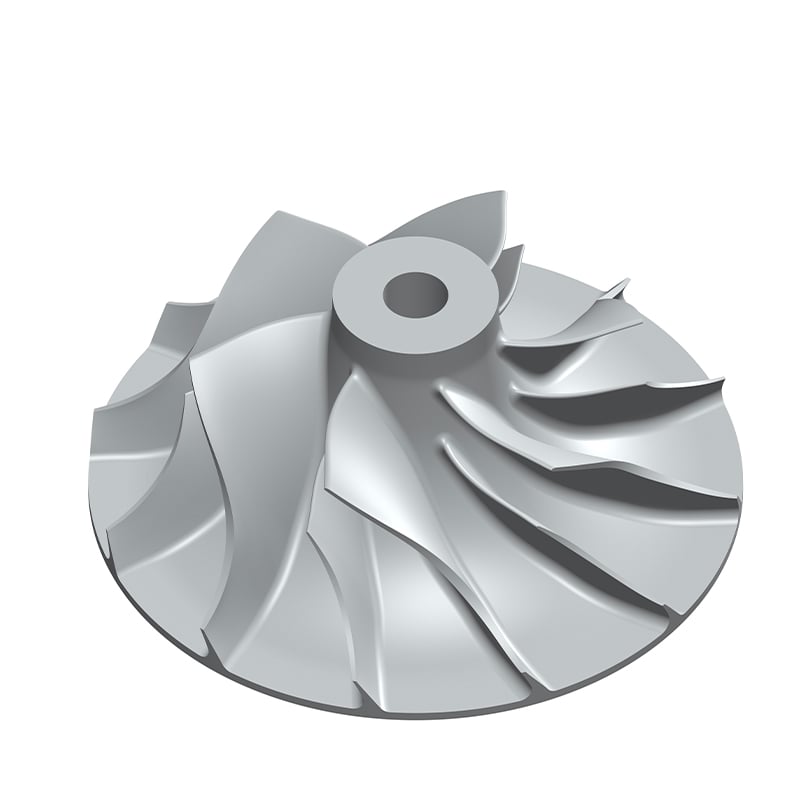

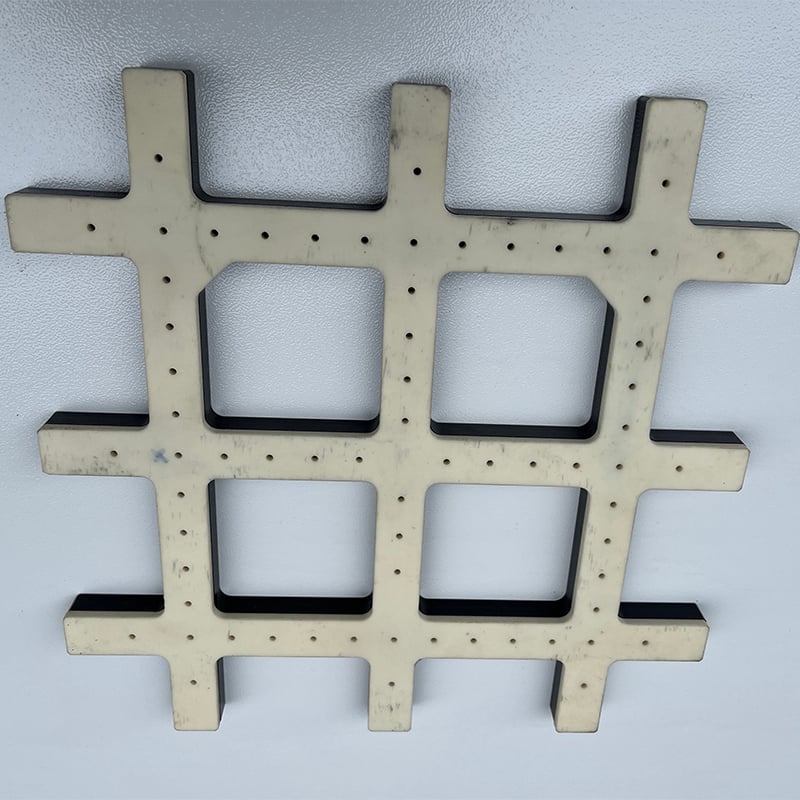

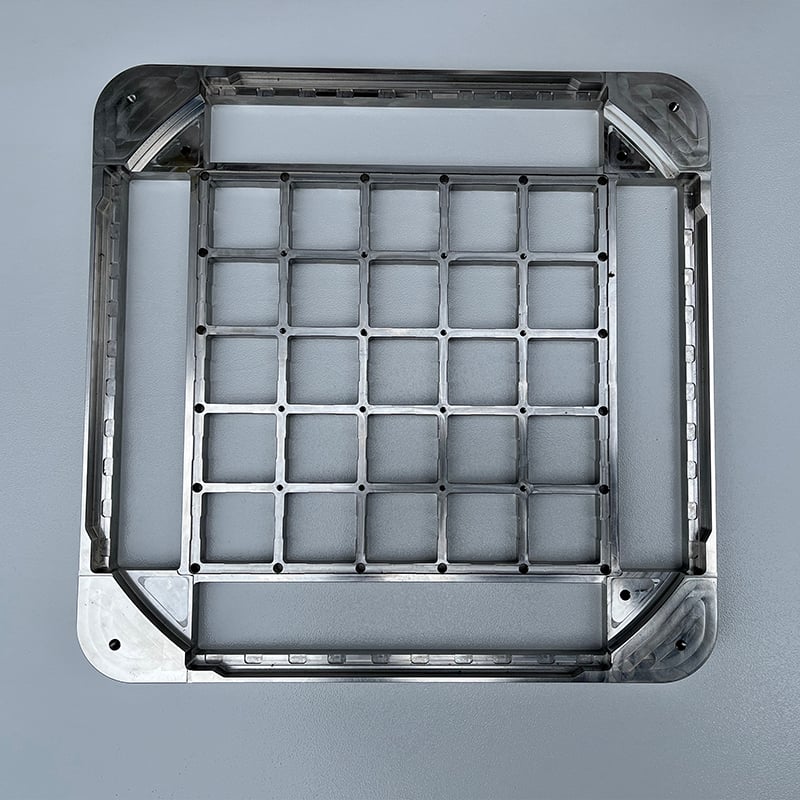

    • Produces intricate and complex components with superior quality
    • Enhances productivity and reduces production time
    • Suitable for prototyping, mold making, and small batch production
    • Ensures smooth surface finish and tight tolerances
    • Offers versatile machining capabilities for intricate designs
    • Optimizes manufacturing processes with high-speed spindle
    • Provides reliable and consistent performance
    • Increases overall efficiency and profitability
